Michigan Wholesale Tool Supply

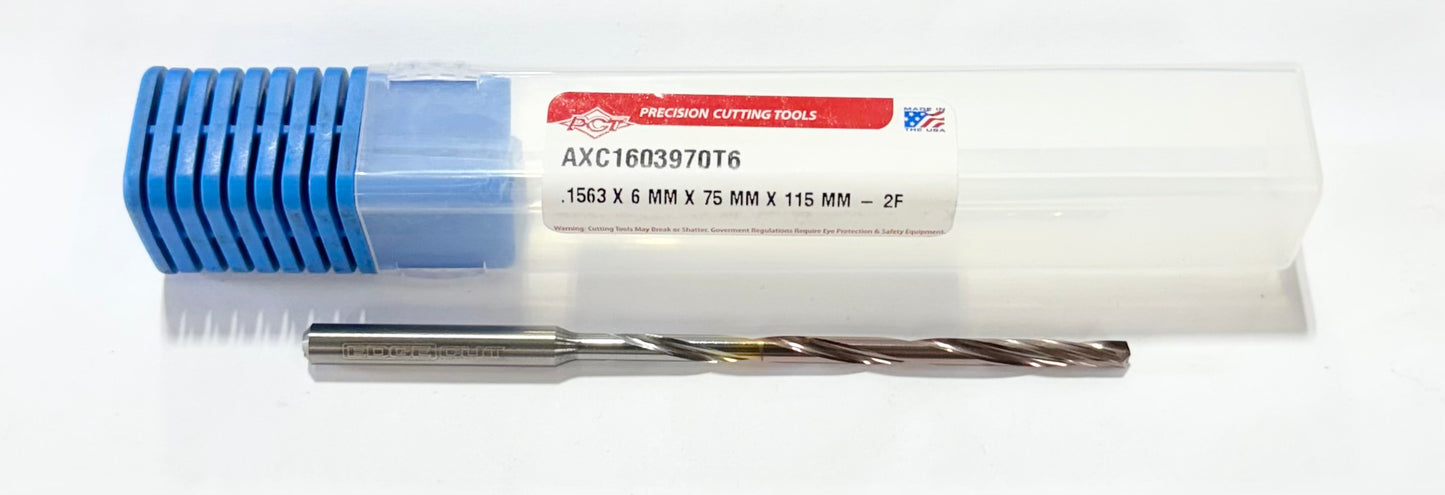

PCT .1563 Solid Carbide Drill 16xD Tripe Margin Coolant Thru 2FL ZircoPlus
PCT .1563 Solid Carbide Drill 16xD Tripe Margin Coolant Thru 2FL ZircoPlus
Regular price
$96.99 USD
Regular price
$0.00 USD
Sale price
$96.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
PCT .1563 Solid Carbide Drill 16xD Tripe Margin Coolant Thru 2FL ZircoPlus
PRODUCT DESCRIPTION
| Drill Bit Size / Cutting Diameter (DC) | 0.1563 mm | Shape | Round |
| Decimal Equivalent | 0.0062″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 16xD | Flute Type | Helical |
| Coating | ZircoPlus | Grade | H5006 |
| Applicable Material | Aluminum / Non-Ferrous Materials | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Series/List # | AXC |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 2.7184 mm |
| Point Angle (SIG) | 135 Degrees | Length Chip Flute (LCF) | 75 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Overall Length (OAL) | 115 mm |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.5748 mm | Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 | Body Material | Carbide |
