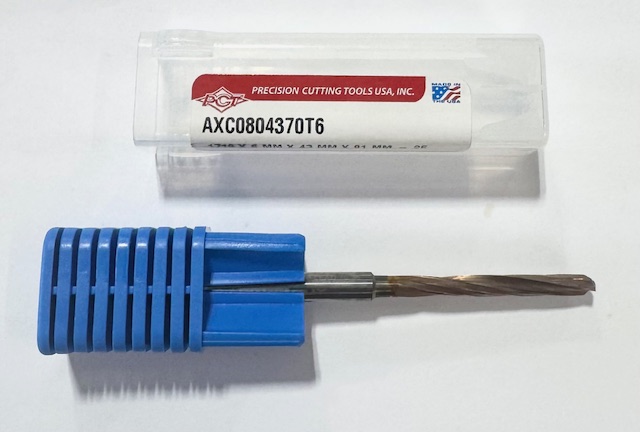

PCT .1719 Solid Carbide Drill 8xD Coolant Thru ZicroPlus Coated Triple Margin

PRODUCT DESCRIPTION

Description	Solid Carbide Drill; 0.1719" Dia. x 0.2362" Shank Dia. x 3.189" OAL x 1.69" LCF ; 135 Degrees ; 8xD ; 2 FL ; ZrCN ; Series AXC
Body Material	Carbide
Brand	Precision Cutting Tools
Coating	ZircoPlus
Connection Diameter Machine Side Dconms	6 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.0068"
Drill Bit Size Cutting Diameter DC	0.1719 mm
Drill Bit Size Cutting Diameter DC Metric	6.7 mm
Feature	TRIPLE-MARGIN DRILL, COOLANT THRU
Flute Count Nof	2
Flute Helix Angle Fha	15 Degrees
Flute Type	Helical
Grade	H5006
Length Chip Flute LCF	43 mm
Length Group	8xD
Measurement Type	Metric
Number Of Teeth	2
Overall Length Oal	81 mm
Point Angle Sig	135 Degrees
Serieslist	AXC
Shank Length LS	1.4961 mm
Shank Standard	h6
Shank Type	Cylindrical
Shape	Round
Tool Type	Solid Carbide Drill
