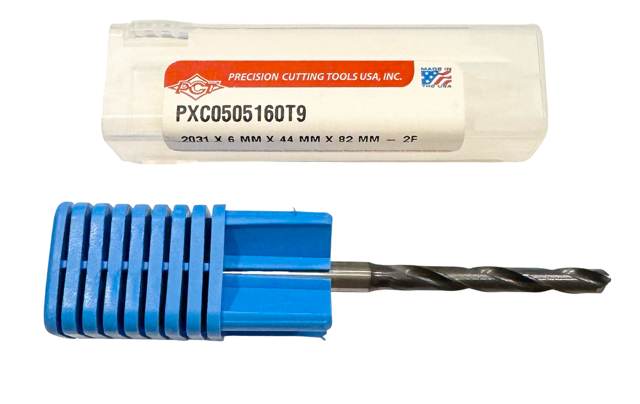

PCT .2031" Solid Carbide Drill 5xD TiAICN Coated 2 Flute Coolant Thru 150 Deg

PRODUCT DESCRIPTION

Description	Solid Carbide Drill; 0.2031" Dia. x 0.2362" Shank Dia. x 3.2283" OAL x 1.73" LCF ; 150 Degrees ; 5xD ; 2 FL ; TiAICN ; Series AX
Body Material	Carbide
Brand	Precision Cutting Tools
Coating	Varianta Supral
Connection Diameter Machine Side Dconms	6 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.008"
Drill Bit Size Cutting Diameter DC	0.2031 mm
Drill Bit Size Cutting Diameter DC Metric	6.7 mm
Feature	PILOT DRILL, COCOLANT THRU
Flute Count Nof	2
Flute Helix Angle Fha	30 Degrees
Flute Type	Helical
Grade	H5009
Length Chip Flute LCF	44 mm
Length Group	5xD
Measurement Type	Metric
Number Of Teeth	2
Overall Length Oal	82 mm
Point Angle Sig	150 Degrees
Serieslist	PXC
Shank Length LS	1.496 mm
Shank Standard	h6
Shank Type	Cylindrical
Shape	Jobber Drill
Tool Type	Solid Carbide Pilot Drill
Usable Length Lu	1.4277 mm
