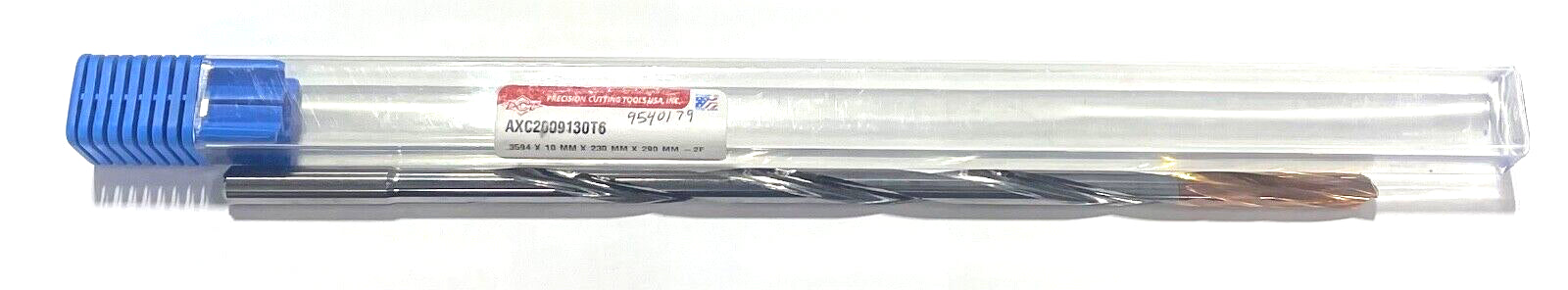

PCT 9.13mm Solid Carbide Drill 20xD ZrCN Coating 135° Coolant Thru 2 Flute USA

PRODUCT DESCRIPTION

PCT

HIGH PERFORMANCE SOLID CARBIDE DRILL

Drill Bit Size / Cutting Diameter (DC)	9.13 mm	Shape	Round
Drill Bit Size / Cutting Diameter (DC) - Metric	9.13 mm	Cutting Edge Material	Carbide
Length Group	20xD	Tool Type	Solid Carbide Drill
Coating	ZrCN	Flute Type	Helical
Applicable Material	| Aluminum / Non-Ferrous Materials |	Grade	H5010 ZircoPlus
Application	| Drilling |	Measurement Type	Metric
Connection Diameter Machine Side (DCONMS)	10 mm	Usable Length (LU)	216.3 mm
Coolant Supply Property (CSP)	Coolant Thru	Length Chip Flute (LCF)	230 mm
Point Angle (SIG)	135 Degrees	Overall Length (OAL)	290 mm
Flute Helix Angle (FHA)	15 Degrees	Flute Count (NOF)	2
Number of Teeth	2	Feature	TRIPLE-MARGIN DRILL
Shank Length (LS)	60 mm	Cutting Direction (HAND)	Right Hand
Shank Type	Round	Body Material	Carbide
Shank Standard	h6
