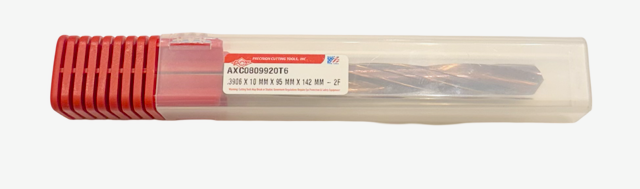

PCT 25/64" Solid Carbide Drill 8xD Triple Margin Coolant Thru ZicroPlus 135 Deg
PCT 25/64" Solid Carbide Drill 8xD Triple Margin Coolant Thru ZicroPlus 135 Deg
Regular price
$59.99 USD
Regular price
$0.00 USD
Sale price
$59.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
PCT 25/64" Solid Carbide Drill 8xD Triple Margin Coolant Thru ZicroPlus 135 Deg
PRODUCT DESCRIPTION
| Description | Solid Carbide Drill; 0.3906" Dia. x 0.3937" Shank Dia. x 5.5906" OAL x 3.74" LCF ; 135 Degrees ; 8xD ; 2 FL ; ZrCN ; Series AXC |
|---|---|
| Applicable Material | Aluminum / Non-Ferrous Materials |
| Brand | Precision Cutting Tools |
| Coating | ZircoPlus |
| Connection Diameter Machine Side Dconms | 10 mm |
| Coolant Supply Property CSP | Coolant Thru |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0154" |
| Drill Bit Size Cutting Diameter DC | 0.3906 mm |
| Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 15 Degrees |
| Flute Type | Helical |
| Grade | H5006 |
| Length Chip Flute LCF | 95 mm |
| Length Group | 8xD |
| Measurement Type | Metric |
| Number Of Teeth | 2 |
| Overall Length Oal | 142 mm |
| Point Angle Sig | 135 Degrees |
| Serieslist | AXC |
| Shank Length LS | 1.8504 mm |
| Shank Standard | h6 |
| Shank Type | Cylindrical |
| Shape | Round |
| Tool Type | Solid Carbide Drill |
| Usable Length Lu | 3.1543 mm |
