Michigan Wholesale Tool Supply

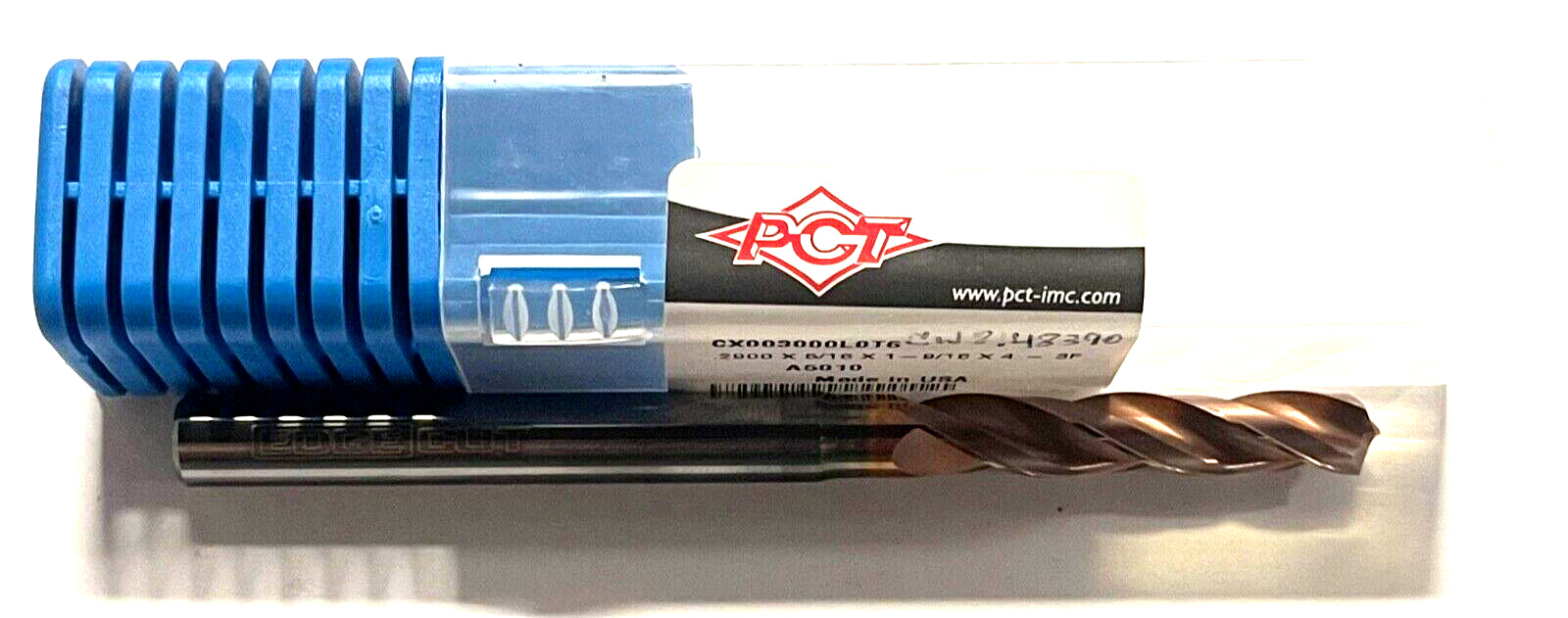

PCT .2900 Solid Carbide Drill 3xD ZRcN Coated 3 Flute USA Made
PCT .2900 Solid Carbide Drill 3xD ZRcN Coated 3 Flute USA Made
Regular price
$14.56 USD
Regular price
$0.00 USD
Sale price
$14.56 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 1 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE

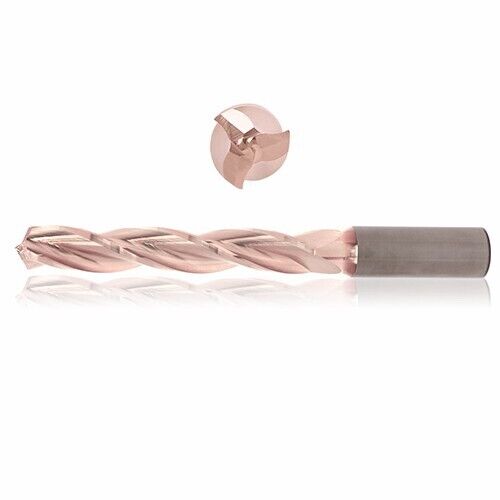

SOLID CARBIDE DRILL 3XD
| Drill Bit Size / Cutting Diameter (DC) | 0.29″ | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Inch | 0.29″ | Shape | Round |
| Decimal Equivalent | 0.29″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.37 mm | Tool Type | Solid Carbide Drill |
| Drill Bit Size / Cutting Diameter (DC) - Letter / Wire Gauge | L | Flute Type | Helical |
| Length Group | 3xD | Grade | A5010 ZircoPlus |
| Coating | ZrCN | Measurement Type | Inch |
| Applicable Material | | Aluminum | Non Ferrous Metals | Cast Iron | | Series/List # | CX |
| Application | | Drilling | | Usable Length (LU) | 1.1275″ |
| Connection Diameter Machine Side (DCONMS) | 5/16″ | Length Chip Flute (LCF) | 1.56″ |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 4″ |
| Point Angle (SIG) | 130 Degrees | Flute Count (NOF) | 3 |
| Flute Helix Angle (FHA) | 30 Degrees | Feature | SINGLE-MARGIN DRILL |
| Number of Teeth | 3 | Cutting Direction (HAND) | Right Hand |
| Shank Length (LS) | 2-7/16″ | Body Material | Carbide |
| Shank Type | Round |
