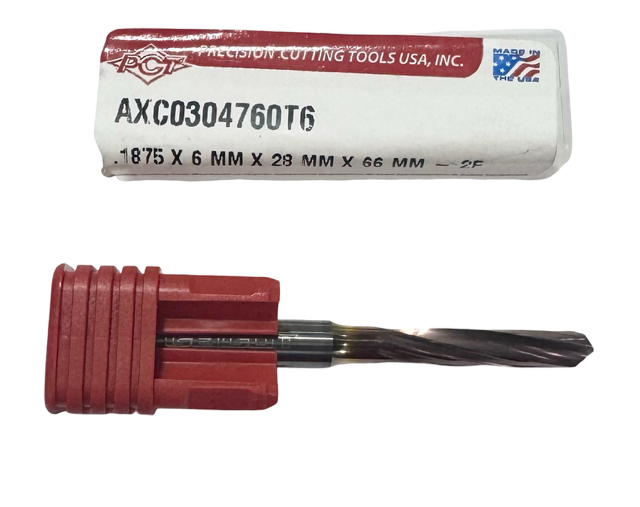

PCT 3/16" Solid Carbide Drill 3xD ZicroPlus Coated Triple Margin Coolant Thru

PRODUCT DESCRIPTION

Description	Solid Carbide Drill; 3/16" Dia. x 0.2362" Shank Dia. x 2.5984" OAL x 1.1" LCF ; 135 Degrees ; 3xD ; 2 FL ; ZrCN ; Series AXC
Body Material	Carbide
Brand	Precision Cutting Tools
Coating	ZircoPlus
Connection Diameter Machine Side Dconms	6 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.0074"
Drill Bit Size Cutting Diameter DC	0.1875 mm
Drill Bit Size Cutting Diameter DC Metric	6.7 mm
Feature	TRIPLE-MARGIN DRILL, COOLANT THRU
Flute Count Nof	2
Flute Helix Angle Fha	15 Degrees
Flute Type	Helical
Grade	H5006
Length Chip Flute LCF	28 mm
Length Group	3xD
Measurement Type	Metric
Number Of Teeth	2
Overall Length Oal	66 mm
Point Angle Sig	135 Degrees
Serieslist	AXC
Shank Length LS	1.496 mm
Shank Standard	h6
Shank Type	Cylindrical
Shape	Round
Tool Type	Solid Carbide Drill
Usable Length Lu	0.8211 mm
