Michigan Wholesale Tool Supply

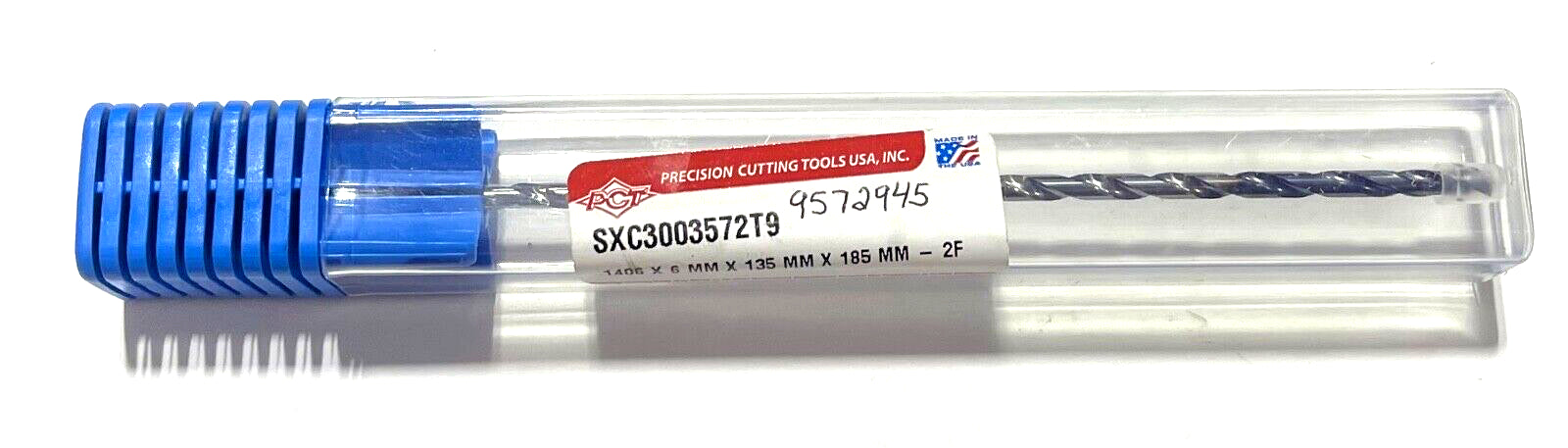

PCT 3.57mm Solid Carbide Drill 30xD TiAlCN Coating 135° Coolant Thru 2 Flute USA
PCT 3.57mm Solid Carbide Drill 30xD TiAlCN Coating 135° Coolant Thru 2 Flute USA
Regular price
$81.90 USD
Regular price
$0.00 USD
Sale price
$81.90 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE
SOLID CARBIDE HIGH PERFORMANCE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 3.57 mm | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.57 mm | Cutting Edge Material | Carbide |
| Length Group | 30xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Flute Type | Helical |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 129.6 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 135 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 185 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 50 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | h6 |
