Michigan Wholesale Tool Supply

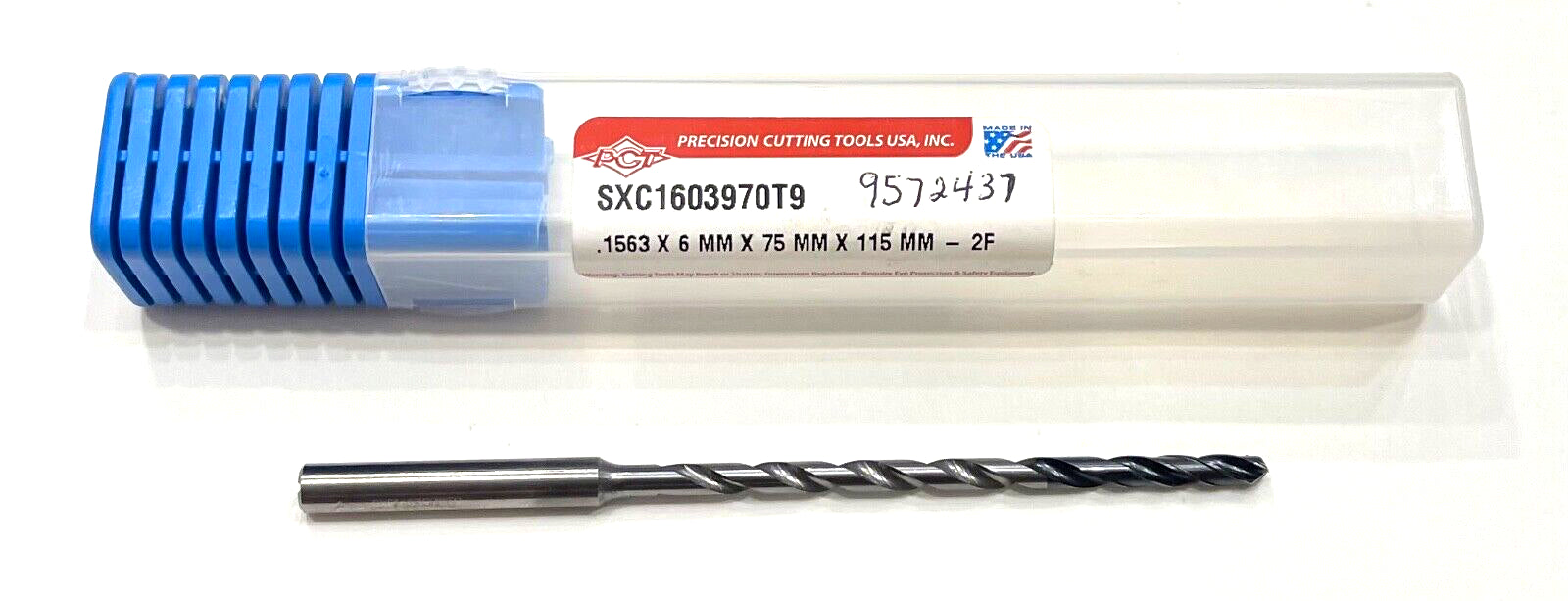

PCT 3.97mm Solid Carbide Drill 16xD TiAICN Coating 135° Coolant Thru 2 Flute USA
PCT 3.97mm Solid Carbide Drill 16xD TiAICN Coating 135° Coolant Thru 2 Flute USA
Regular price
$50.23 USD
Regular price
$0.00 USD
Sale price
$50.23 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
PCT
USA MADE
SOLID CARBIDE HIGH PERFORMANCE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 3.97 mm | Shape | Round |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 3.97 mm | Cutting Edge Material | Carbide |
| Length Group | 16xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Flute Type | Helical |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 69 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 75 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 115 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 40 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
| Shank Standard | h6 |
