Michigan Wholesale Tool Supply

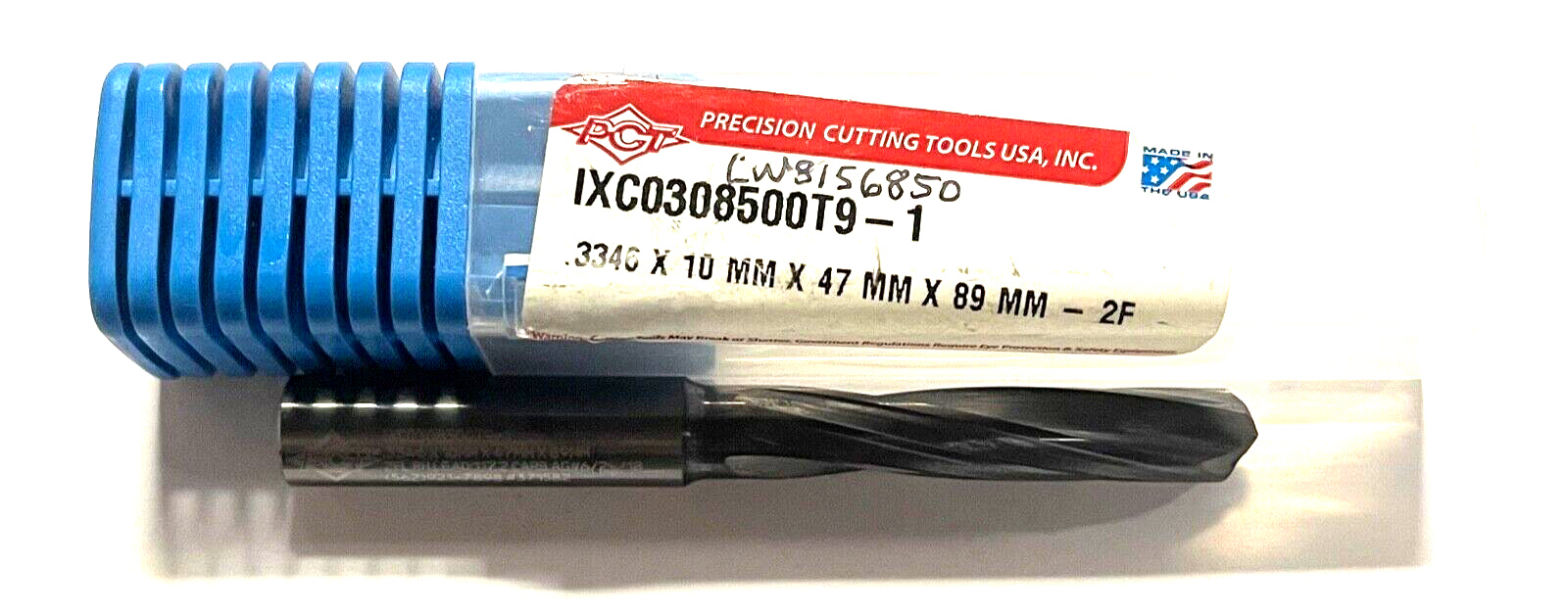

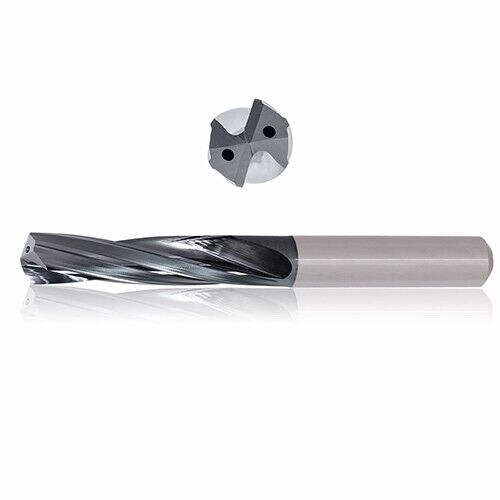

PCT .3346 Solid Carbide Triple Margin Drill 3xD Coolant Thru 2FL Varianta Supral
PCT .3346 Solid Carbide Triple Margin Drill 3xD Coolant Thru 2FL Varianta Supral
Regular price
$27.48 USD
Regular price
$0.00 USD
Sale price
$27.48 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE
SOLID CARBIDE TRIPLE MARGIN DRILL 3XD
| Drill Bit Size / Cutting Diameter (DC) | 0.3346 mm | Shape | Round |
| Decimal Equivalent | 0.0132″ | Cutting Edge Material | Carbide |
| Length Group | 3xD | Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral | Flute Type | Helical |
| Applicable Material | Cast Iron | Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | IXC |
| Point Angle (SIG) | 135 Degrees | Usable Length (LU) | 1.3485 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Length Chip Flute (LCF) | 47 mm |
| Number of Teeth | 2 | Overall Length (OAL) | 89 mm |
| Shank Length (LS) | 1.6535 mm | Flute Count (NOF) | 2 |
| Shank Type | Cylindrical | Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 | Cutting Direction (HAND) | Right Hand |
