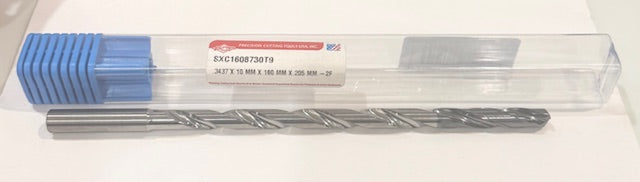

PCT .3437 Solid Carbide Drill 16xD Double Margin Coolant Thru 2FL TiAICN 135 Deg

PRODUCT DESCRIPTION

Description	Solid Carbide Drill; 0.3437" Dia. x 0.3937" Shank Dia. x 8.0709" OAL x 6.3" LCF ; 135 Degrees ; 16xD ; 2 FL ; TiAICN ; Series SXC
Body Material	Carbide
Brand	Precision Cutting Tools
Coating	Varianta Supral
Connection Diameter Machine Side Dconms	10 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.0135"
Drill Bit Size Cutting Diameter DC	0.3437 mm
Drill Bit Size Cutting Diameter DC Metric	6.7 mm
Feature	DOUBLE-MARGIN DRILL, COOLANT THRU
Flute Count Nof	2
Flute Helix Angle Fha	30 Degrees
Flute Type	Helical
Grade	H5009
Length Chip Flute LCF	160 mm
Length Group	16xD
Measurement Type	Metric
Number Of Teeth	2
Overall Length Oal	205 mm
Point Angle Sig	135 Degrees
Serieslist	SXC
Shank Length LS	1.7717 mm
Shank Standard	h6
Shank Type	Cylindrical
Shape	Round
Tool Type	Solid Carbide Drill
Usable Length Lu	5.7837 mm
