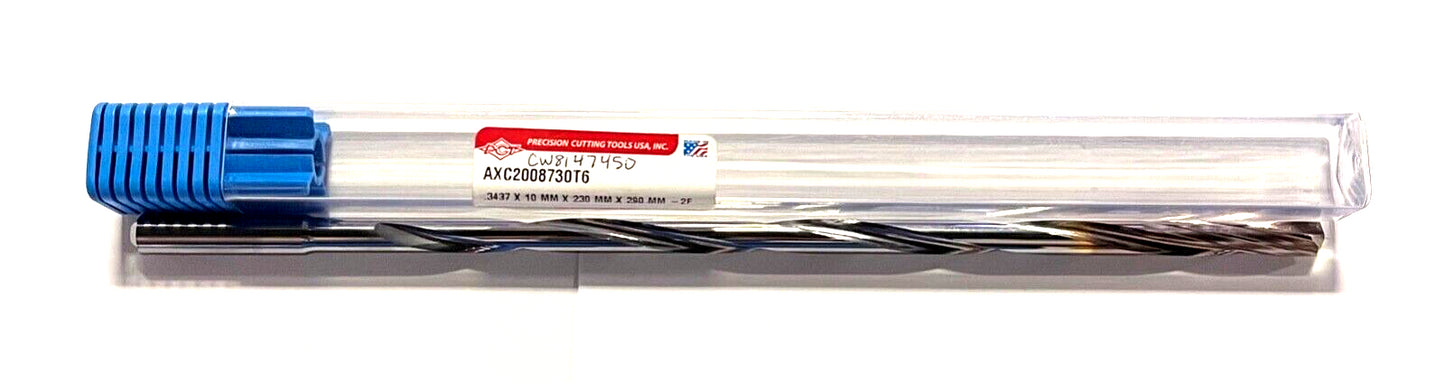

PCT .3437 Solid Carbide Drill 20xD Coolant Thru 135° 2FL ZicroPlus Triple Margin
PCT .3437 Solid Carbide Drill 20xD Coolant Thru 135° 2FL ZicroPlus Triple Margin
Regular price
$98.46 USD
Regular price
$0.00 USD
Sale price
$98.46 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 2 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE
SOLID CARBIDE COOLANT THRU TRIPLE MARGAIN DRILL
| Drill Bit Size / Cutting Diameter (DC) | 0.3437 mm | Shape | Round |
| Decimal Equivalent | 0.0135″ | Cutting Edge Material | Carbide |
| Length Group | 20xD | Tool Type | Solid Carbide Drill |
| Coating | ZircoPlus | Flute Type | Helical |
| Applicable Material | Aluminum / Non-Ferrous Materials | Grade | H5006 |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | AXC |
| Point Angle (SIG) | 135 Degrees | Usable Length (LU) | 8.5396 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Length Chip Flute (LCF) | 230 mm |
| Number of Teeth | 2 | Overall Length (OAL) | 290 mm |
| Shank Length (LS) | 2.3622 mm | Flute Count (NOF) | 2 |
| Shank Type | Cylindrical | Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 | Cutting Direction (HAND) | Right Hand |
