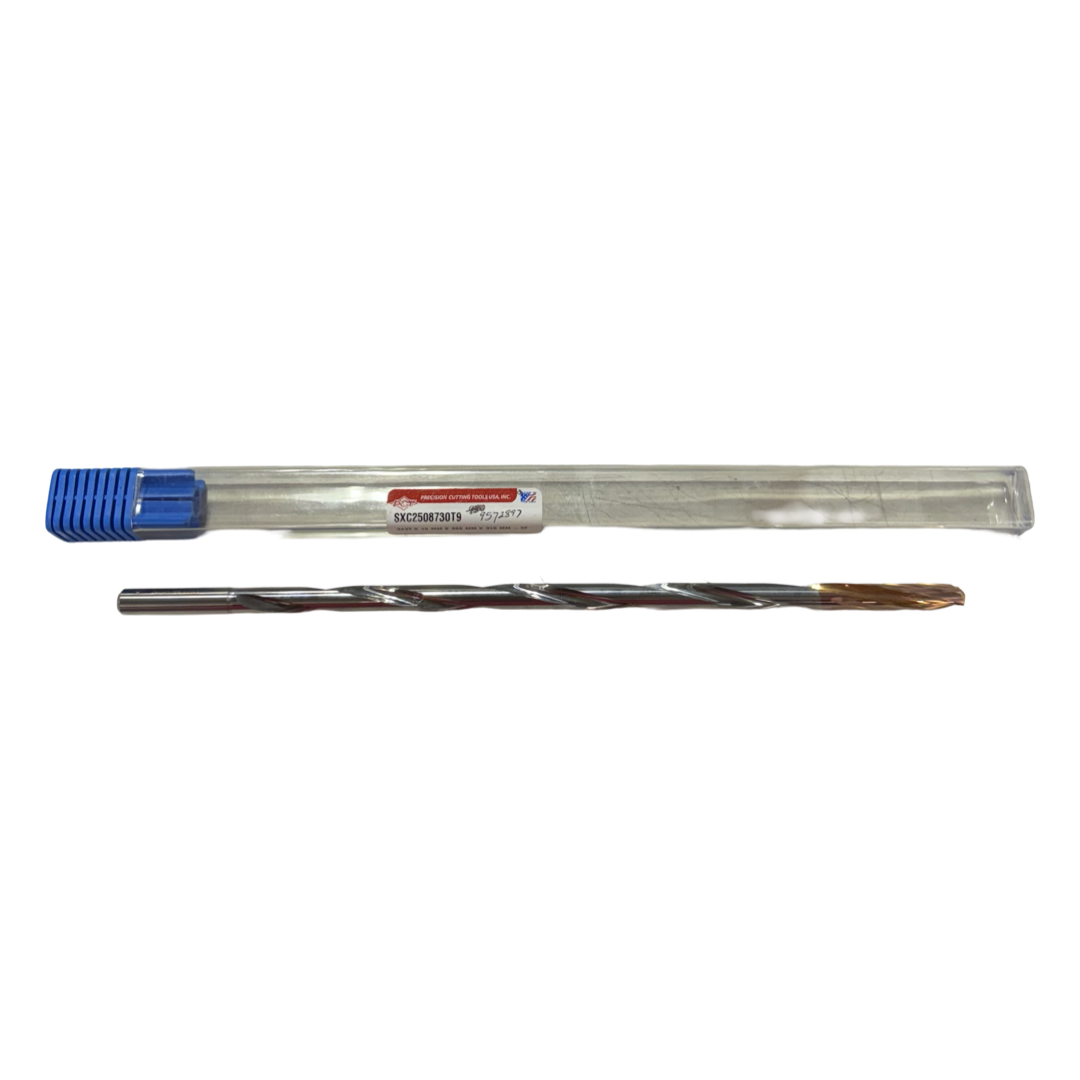

PCT .3437" Solid Carbide Drill 25xD Double Margin Coolant Thru Varianta Supral
PCT .3437" Solid Carbide Drill 25xD Double Margin Coolant Thru Varianta Supral
Regular price
$145.00 USD
Regular price
$0.00 USD
Sale price
$145.00 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
PCT .3437" Solid Carbide Drill 25xD Double Margin Coolant Thru Varianta Supral
PRODUCT DESCRIPTION
| Drill Bit Size / Cutting Diameter (DC) | 0.3437 mm | Shape | Round |
| Decimal Equivalent | 0.0135″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 6.7 mm | Tool Type | Solid Carbide Drills |
| Length Group | 25xD | Flute Type | Helical |
| Coating | Varianta Supral | Grade | H5009 |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | SXC |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 10.0357 mm |
| Point Angle (SIG) | 135 Degrees | Length Chip Flute (LCF) | 268 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 310 mm |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.6535 mm | Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Type | Round | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 | Body Material | Carbide |
