Michigan Wholesale Tool Supply

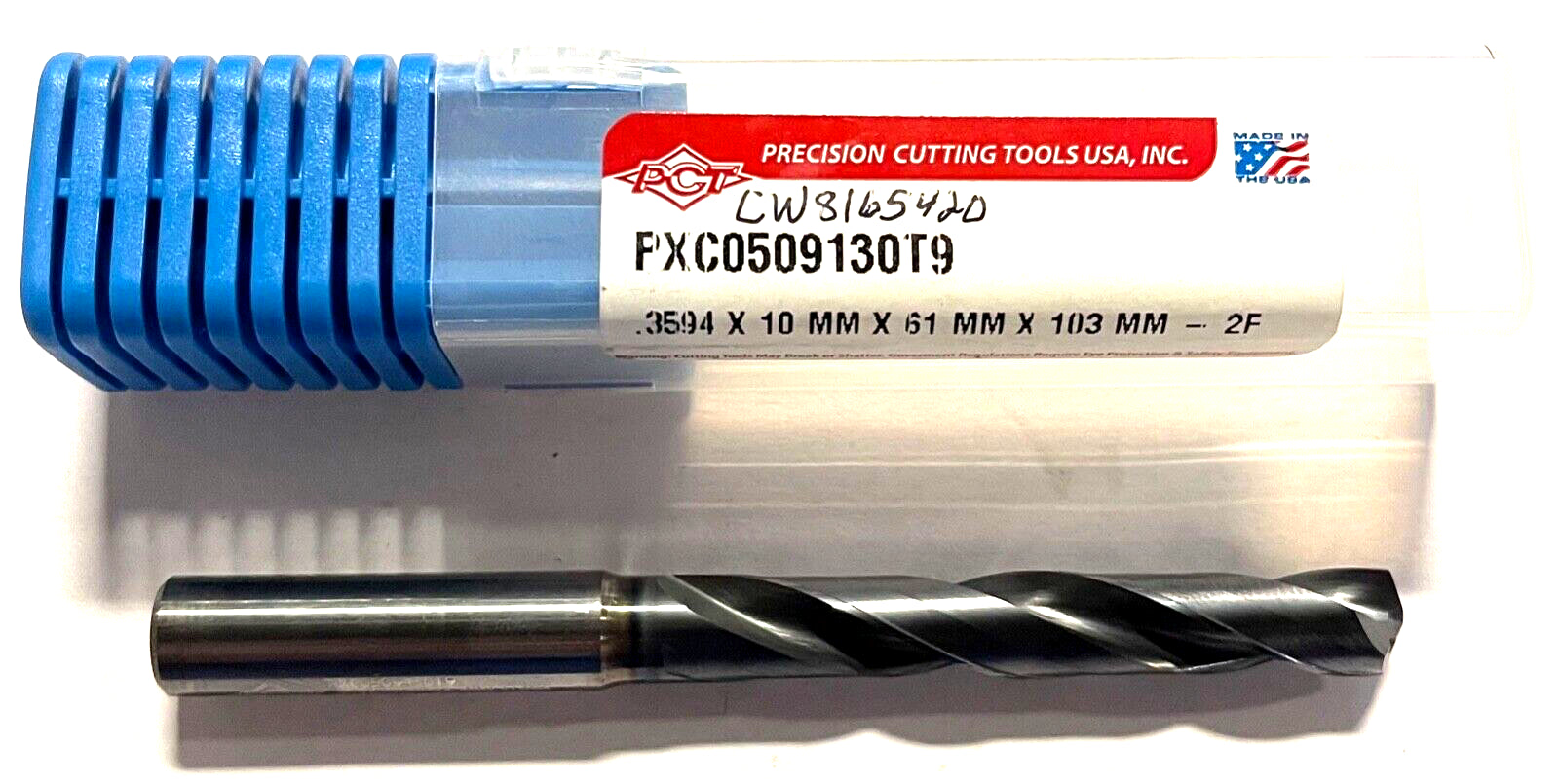

PCT .3594 Solid Carbide Drill 5xD Coolant Thru 150° 2FL Varianta Supral Coated
PCT .3594 Solid Carbide Drill 5xD Coolant Thru 150° 2FL Varianta Supral Coated
Regular price
$29.12 USD
Regular price
$0.00 USD
Sale price
$29.12 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE

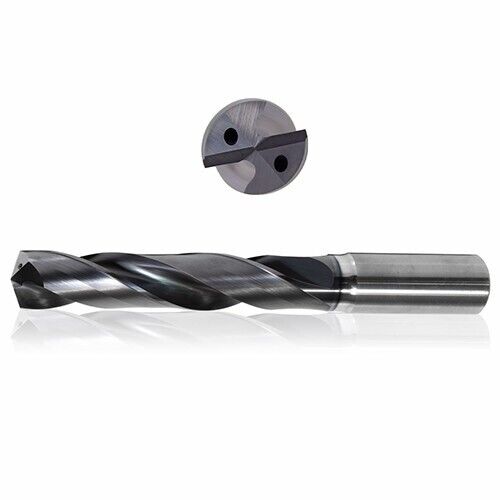

SOLID CARBIDE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 0.3594 mm | Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0141″ | Tool Type | Solid Carbide Pilot Drill |
| Length Group | 5xD | Flute Type | Helical |
| Coating | Varianta Supral | Grade | H5009 |
| Applicable Material | Steel | Stainless Steel | Cast Iron | Super-Alloys / Titanium | Aluminum / Non-Ferrous Materials | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Series/List # | PXC |
| Coolant Supply Property (CSP) | Coolant Thru | Usable Length (LU) | 1.8625 mm |
| Point Angle (SIG) | 150 Degrees | Length Chip Flute (LCF) | 61 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Overall Length (OAL) | 103 mm |
| Number of Teeth | 2 | Flute Count (NOF) | 2 |
| Shank Length (LS) | 1.6535 mm | Feature | PILOT DRILL, COCOLANT THRU |
| Shank Type | Cylindrical | Cutting Direction (HAND) | Right Hand |
| Shank Standard | h6 |
