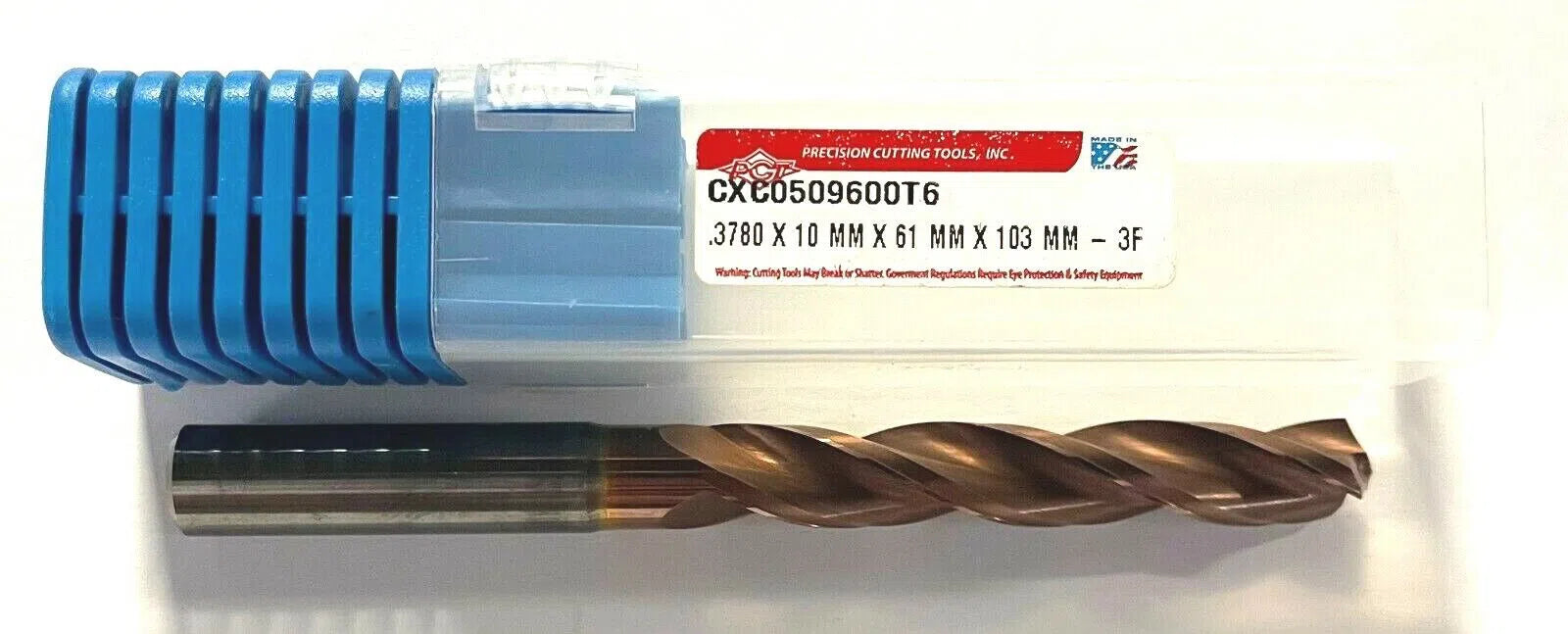

PCT .3780 Solid Carbide Drill Coolant Thru ZrCN Coated 3FL 130° 5xD USA Made

PCT .3780 Solid Carbide Drill Coolant Thru ZrCN Coated 3FL 130° 5xD USA Made

$19.87 USD
$0.00 USD $19.87 USD
Sale Sold out
Shipping calculated at checkout.

Low stock: 7 left
PRECISION CUTTING TOOLS

USA MADE

SOLID CARBIDE DRILL

Drill Bit Size / Cutting Diameter (DC) 0.378″ Cutting Edge Material Carbide
Decimal Equivalent 0.378″ Tool Type Solid Carbide Drill
Length Group 5xD Grade H5010 Zirco
Coating ZrCN Measurement Type Inch
Connection Diameter Machine Side (DCONMS) 0.3937″ Usable Length (LU) 1.8346″
Point Angle (SIG) 130 Degrees Length Chip Flute (LCF) 2.4″
Number of Teeth 3 Overall Length (OAL) 4.0551″
Shank Length (LS) 1.6535″ Flute Count (NOF) 3
Shank Type Round Cutting Direction (HAND) Right Hand
Shank Standard h6 Body Material Carbide
