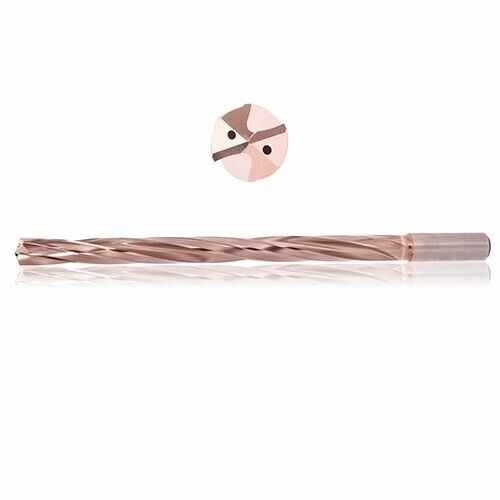

PCT 4.37mm Solid Carbide Drill 5xD ZrCN Coating 135° Coolant Thru 2 Flute USA
PCT 4.37mm Solid Carbide Drill 5xD ZrCN Coating 135° Coolant Thru 2 Flute USA
Regular price
$19.65 USD
Regular price
$0.00 USD
Sale price
$19.65 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
PCT
USA MADE
HIGH PERFORMANCE SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 4.37 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 4.37 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H5010 ZircoPlus |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 6 mm | Usable Length (LU) | 29.4 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 36 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 74 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | TRIPLE-MARGIN DRILL |
| Shank Length (LS) | 38 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
