Michigan Wholesale Tool Supply

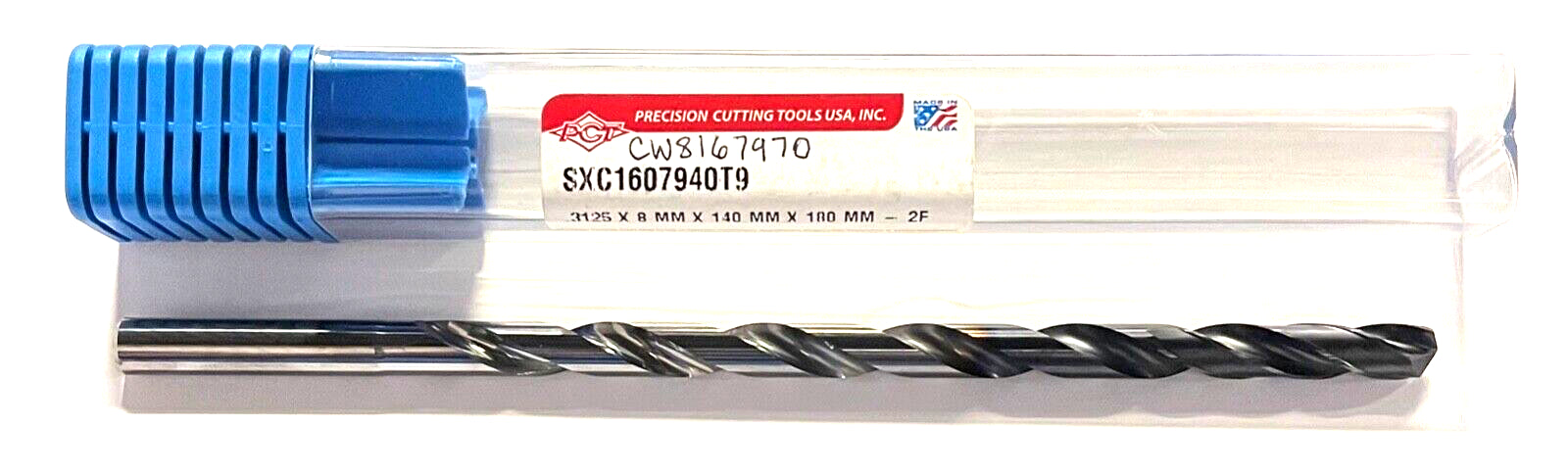

PCT 5/16" Solid Carbide Drill 16xD Coolant Thru 135° 2FL Varianta Supral Coated
PCT 5/16" Solid Carbide Drill 16xD Coolant Thru 135° 2FL Varianta Supral Coated
Regular price
$62.97 USD
Regular price
$0.00 USD
Sale price
$62.97 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE
SOLID CARBIDE COOLANT THRU DOUBLE MARGAIN DRILL
| Drill Bit Size / Cutting Diameter (DC) | 0.3125 mm | Shape | Round |
| Decimal Equivalent | 0.0123″ | Cutting Edge Material | Carbide |
| Length Group | 16xD | Tool Type | Solid Carbide Drill |
| Coating | Varianta Supral | Flute Type | Helical |
| Applicable Material | Steel | Stainless Steel | Super-Alloys / Titanium | Grade | H5009 |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Measurement Type | Metric |
| Coolant Supply Property (CSP) | Coolant Thru | Series/List # | SXC |
| Point Angle (SIG) | 135 Degrees | Usable Length (LU) | 5.0431 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Length Chip Flute (LCF) | 140 mm |
| Number of Teeth | 2 | Overall Length (OAL) | 180 mm |
| Shank Length (LS) | 1.5748 mm | Flute Count (NOF) | 2 |
| Shank Type | Cylindrical | Feature | DOUBLE-MARGIN DRILL, COOLANT THRU |
| Shank Standard | h6 | Cutting Direction (HAND) | Right Hand |
