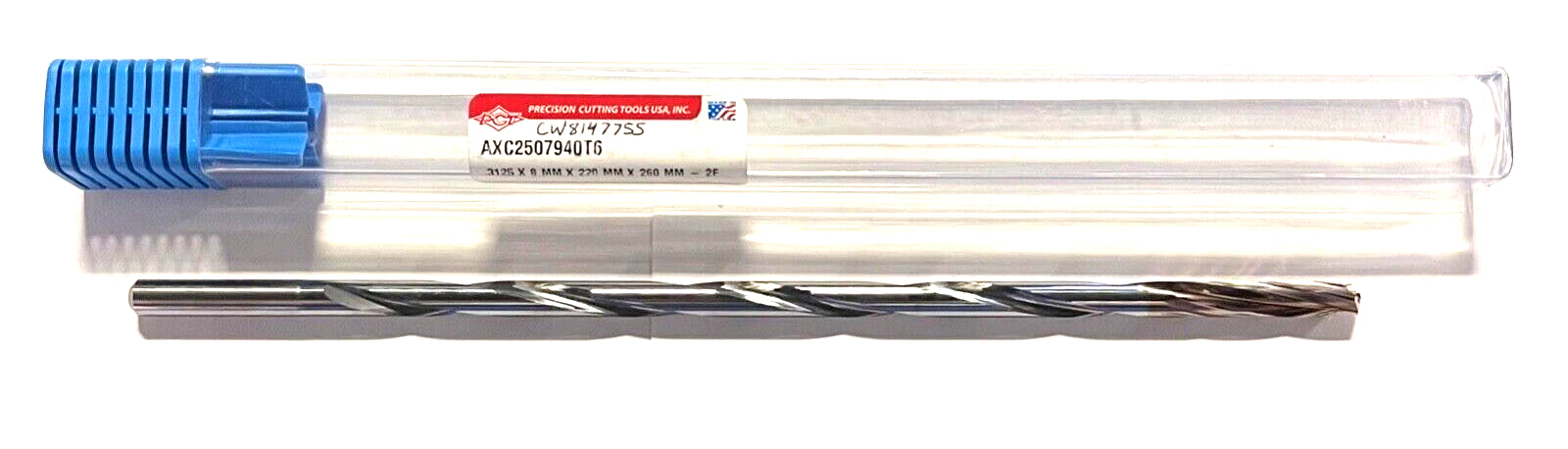

PCT 5/16" Solid Carbide Drill 25xD Coolant Thru 135° 2FL ZicroPlus Triple Margin

PRODUCT DESCRIPTION

PRECISION CUTTING TOOLS

USA MADE

SOLID CARBIDE COOLANT THRU TRIPLE MARGAIN DRILL

Drill Bit Size / Cutting Diameter (DC)	0.3125 mm	Shape	Round
Decimal Equivalent	0.0123″	Cutting Edge Material	Carbide
Length Group	25xD	Tool Type	Solid Carbide Drill
Coating	ZircoPlus	Flute Type	Helical
Applicable Material	Aluminum / Non-Ferrous Materials	Grade	H5006
Connection Diameter Machine Side (DCONMS)	8 mm	Measurement Type	Metric
Coolant Supply Property (CSP)	Coolant Thru	Series/List #	AXC
Point Angle (SIG)	135 Degrees	Usable Length (LU)	12.1297 mm
Flute Helix Angle (FHA)	15 Degrees	Length Chip Flute (LCF)	320 mm
Number of Teeth	2	Overall Length (OAL)	370 mm
Shank Length (LS)	1.9685 mm	Flute Count (NOF)	2
Shank Type	Cylindrical	Feature	TRIPLE-MARGIN DRILL, COOLANT THRU
Shank Standard	h6	Cutting Direction (HAND)	Right Hand
