Low stock: 4 left

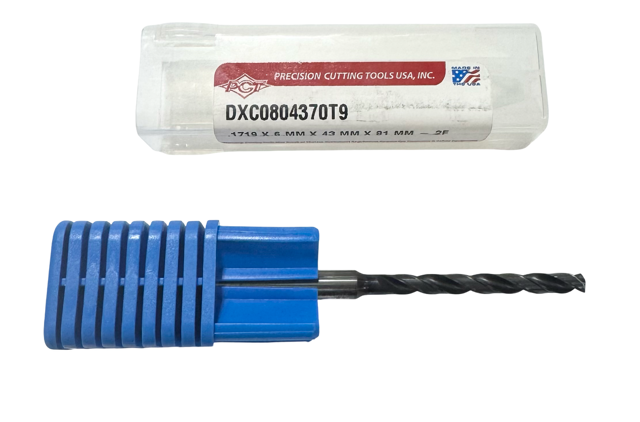

PCT .1719 Solid Carbide Drill 8xD Coolant Thru Double Margin TiAlCN

PRODUCT DESCRIPTION

CW8171410
Country of Manufacture	United States
Description	Solid Carbide Drill; 0.1719" Dia. x 0.2362" Shank Dia. x 3.189" OAL x 1.69" LCF ; 140 Degrees ; 8xD ; 2 FL ; TiAICN ; Series DXC
Body Material	Carbide
Brand	Precision Cutting Tools
Coating	Varianta Supral
Connection Diameter Machine Side Dconms	6 mm
Coolant Supply Property CSP	Coolant Thru
Cutting Direction Hand	Right-Hand
Cutting Edge Material	Carbide
Decimal Equivalent	0.0068"
Drill Bit Size Cutting Diameter DC	0.1719 mm
Drill Bit Size Cutting Diameter DC Metric	6.7 mm
Feature	DOUBLE-MARGIN DRILL, COOLANT THRU
Flute Count Nof	2
Flute Helix Angle Fha	30 Degrees
Flute Type	Helical
Grade	H5009
Length Chip Flute LCF	43 mm
Length Group	8xD
Measurement Type	Metric
Number Of Teeth	2
Overall Length Oal	81 mm
Point Angle Sig	140 Degrees
Serieslist	DXC
Shank Length LS	1.4961 mm
Shank Standard	h6
Shank Type	Cylindrical
Shape	Round
Tool Type	Solid Carbide Drill
Usable Length Lu	1.4351 mm
