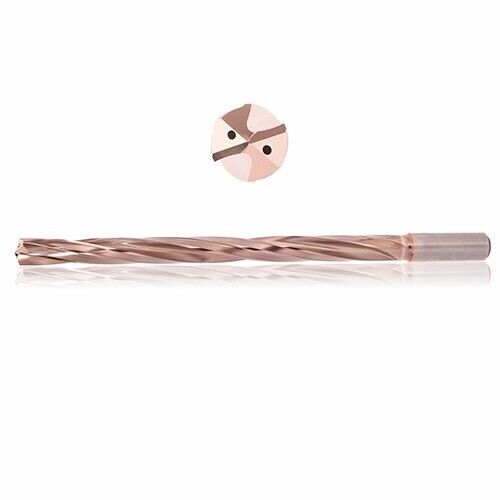

PCT 7.15mm Solid Carbide Drill 5xD ZrCN Coating 135° Coolant Thru 2 Flute USA
PCT 7.15mm Solid Carbide Drill 5xD ZrCN Coating 135° Coolant Thru 2 Flute USA
Regular price
$25.48 USD
Regular price
$0.00 USD
Sale price
$25.48 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 4 left
Couldn't load pickup availability
PRECISION CUTTING TOOLS
USA MADE
SOLID CARBIDE HIGH PERFORMANCE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 7.15 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 7.15 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drill |
| Coating | ZrCN | Flute Type | Helical |
| Applicable Material | | Aluminum / Non-Ferrous Materials | | Grade | H5010 ZircoPlus |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 8 mm | Usable Length (LU) | 42.2 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 53 mm |
| Point Angle (SIG) | 135 Degrees | Overall Length (OAL) | 91 mm |
| Flute Helix Angle (FHA) | 15 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | TRIPLE-MARGIN DRILL |
| Shank Length (LS) | 38 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
