Michigan Wholesale Tool Supply

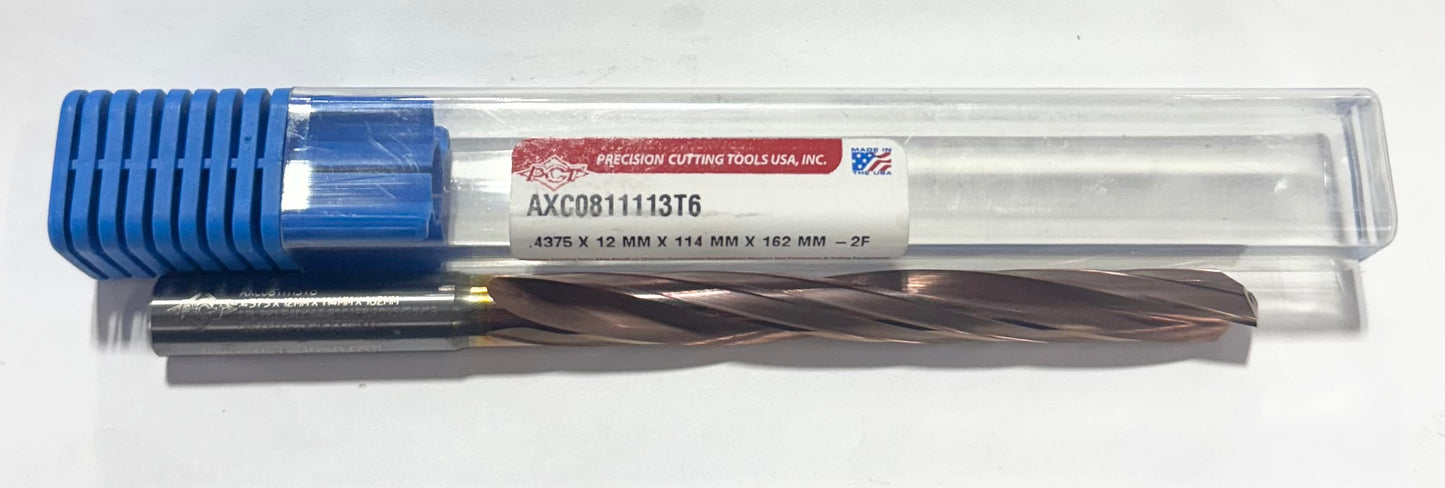

PCT 7/16" Solid Carbide Drill 8xD Coolant Thru 2 Flute ZicroPlus 135 Deg
PCT 7/16" Solid Carbide Drill 8xD Coolant Thru 2 Flute ZicroPlus 135 Deg
Regular price
$85.99 USD
Regular price
$0.00 USD
Sale price
$85.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
PCT 7/16" Solid Carbide Drill 8xD Coolant Thru 2 Flute ZicroPlus 135 Deg
PRODUCT DESCRIPTION
| Description | Solid Carbide Drill; 7/16" Dia. x 0.4724" Shank Dia. x 6.378" OAL x 4.49" LCF ; 135 Degrees ; 8xD ; 2 FL ; ZrCN ; Series AXC |
|---|---|
| Brand | Precision Cutting Tools |
| Coating | ZircoPlus |
| Connection Diameter Machine Side Dconms | 12 mm |
| Coolant Supply Property CSP | Coolant Thru |
| Cutting Direction Hand | Right-Hand |
| Cutting Edge Material | Carbide |
| Decimal Equivalent | 0.0172" |
| Drill Bit Size Cutting Diameter DC | 0.4375 mm |
| Feature | TRIPLE-MARGIN DRILL, COOLANT THRU |
| Flute Count Nof | 2 |
| Flute Helix Angle Fha | 15 Degrees |
| Flute Type | Helical |
| Grade | H5006 |
| Length Chip Flute LCF | 114 mm |
| Length Group | 8xD |
| Measurement Type | Metric |
| Number Of Teeth | 2 |
| Overall Length Oal | 162 mm |
| Point Angle Sig | 135 Degrees |
| Serieslist | AXC |
| Shank Length LS | 1.8898 mm |
| Shank Standard | h6 |
| Shank Type | Cylindrical |
| Shape | Round |
| Tool Type | Solid Carbide Drill |
| Usable Length Lu | 3.832 mm |
