Michigan Wholesale Tool Supply

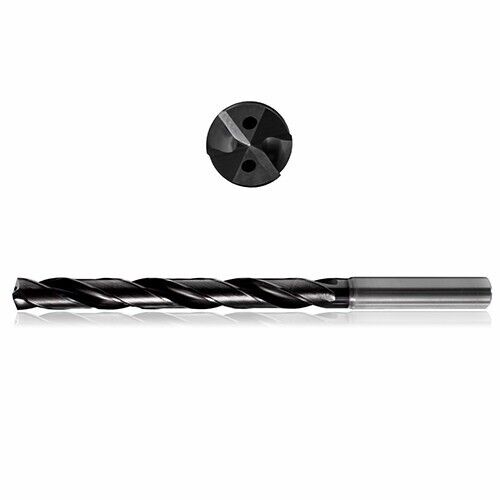

PCT 9.92mm Solid Carbide Drill 5xD TiAICN Coating 140° Coolant Thru 2 Flute USA
PCT 9.92mm Solid Carbide Drill 5xD TiAICN Coating 140° Coolant Thru 2 Flute USA
Regular price
$30.57 USD
Regular price
$0.00 USD
Sale price
$30.57 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 4 left
Couldn't load pickup availability
PCT
USA MADE
HIGH PERFORMANCE SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 9.92 mm | Shank Standard | h6 |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.92 mm | Cutting Edge Material | Carbide |
| Length Group | 5xD | Tool Type | Solid Carbide Drill |
| Coating | TiAICN | Flute Type | Helical |
| Applicable Material | | Stainless Steel | Steel | Super-Alloys / Titanium | | Grade | H5009 Varianta Supral |
| Application | | Drilling | | Measurement Type | Metric |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Usable Length (LU) | 46.1 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Length Chip Flute (LCF) | 61 mm |
| Point Angle (SIG) | 140 Degrees | Overall Length (OAL) | 103 mm |
| Flute Helix Angle (FHA) | 30 Degrees | Flute Count (NOF) | 2 |
| Number of Teeth | 2 | Feature | DOUBLE-MARGIN DRILL |
| Shank Length (LS) | 42 mm | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round | Body Material | Carbide |
