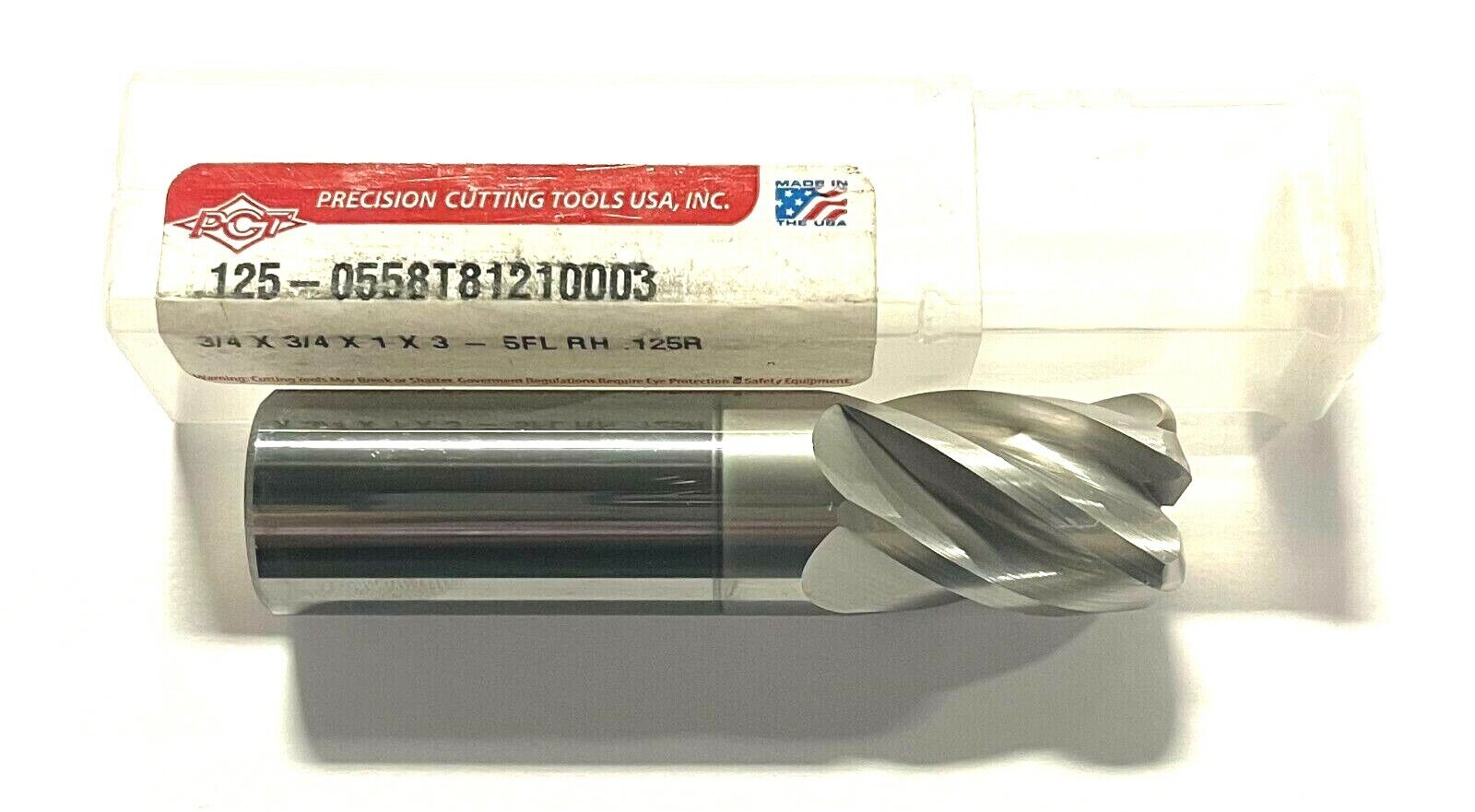

PCT Carbide End Mill 3/4" x 3/4" x 1" x 3" AlTiCrN Coated 5FL .125 Radius USA
PCT Carbide End Mill 3/4" x 3/4" x 1" x 3" AlTiCrN Coated 5FL .125 Radius USA
Regular price
$33.12 USD
Regular price
$0.00 USD
Sale price
$33.12 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 1 left
Couldn't load pickup availability
PCT
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 3/4″ | Grade | H5008 Exxtral Silver |
| Connection Diameter Machine Side (DCONMS) | 3/4″ | Peripheral Effective Cutting Edge Count (ZEFP) | 5 |
| Depth of Cut Maximum (APMX) | 1″ | Tool Type | Solid Carbide Endmill |
| Overall Length (OAL) | 3″ | Maximum Feed per Tooth (fz(max)) | 0.011 ″/tooth |
| Cutting Edge Material | Carbide | Minimum Feed per Tooth (fz(min)) | 0.002 ″/tooth |
| Coating | AITiCrN | Length Group | Stub |
| Flute Count (NOF) | 5 | Shank Standard | h6 |
| Flute Helix Angle (FHA) | 35 Degrees | Body Material | Carbide |
| Shank Type | Round | Decimal Equivalent | 0.75″ |
| End Shape | Corner Radius | Measurement Type | Inch |
| Usable Length (LU) | 1″ | Series/List # | 558 |
| Application | | Finish | HEM | Semi Finish | | Shank Size (SS) | 3/4″ |
| Corner Radius (RE) | 1/8″ |
