Michigan Wholesale Tool Supply

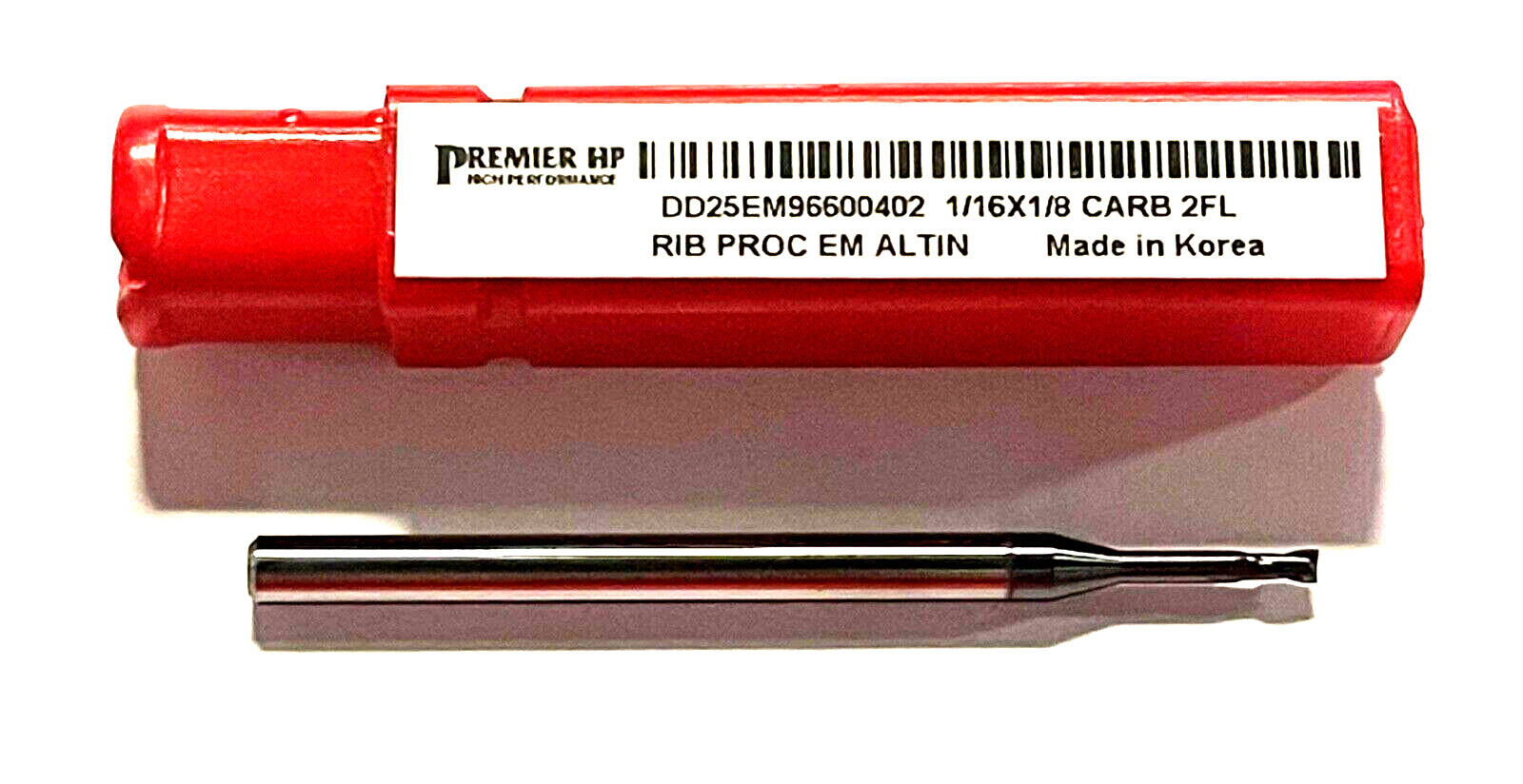

Premier HP 1/16" Carbide End Mill High Performance Rib Processing AlTiN 2 Flute
Premier HP 1/16" Carbide End Mill High Performance Rib Processing AlTiN 2 Flute
Regular price
$5.15 USD
Regular price
$0.00 USD
Sale price
$5.15 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 8 left
Couldn't load pickup availability
PREMIER HP
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 1/16″ | Flute Count (NOF) | 2 |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Usable Length (LU) | 3/32″ |
| Depth of Cut Maximum (APMX) | 3/32″ | Neck Diameter (DN) | 0.06″ |
| Overall Length (OAL) | 1-7/8″ | Tool Type | High Performance |
| Cutting Edge Material | Carbide | Length Group | Rib Processing |
| Coating | AlTiN | Decimal Equivalent | 0.0625″ |
Product Features
Remarks
•2 Flute Rib Processing End Mills
•Suitable for mold and die work
•O.D. Tolerance: .0005″ -.0015″
•Shank Tolerance: 0 -.0003″
•High speed cutting and finish milling with high feed rate
•Through AlTiN coating endurance when dry-milling
•Suitable for mold and die work
