Michigan Wholesale Tool Supply

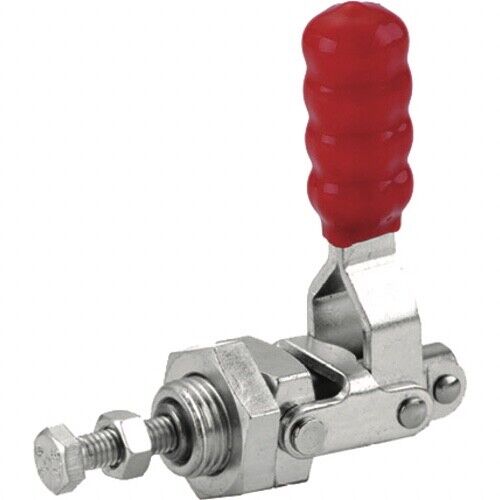

RapidHold 200 lbs 1/4-20 Thread Body Straight Line Push Pull Toggle Clamp
RapidHold 200 lbs 1/4-20 Thread Body Straight Line Push Pull Toggle Clamp
Regular price
$4.36 USD
Regular price
$0.00 USD
Sale price
$4.36 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
64 in stock
Couldn't load pickup availability
RAPIDHOLD
| Style | Push/Pull Toggle Clamp | Bar Style | Straight Line |
| Type | Toggle Clamp | Mounting Diameter | 0.2000″ |
| Arm | 1.73″ | Mounting Length | .41″ |
| Height Under Clamp Arm | .47″ | Mounting Width | .71″ |
| Holding Capacity | 200 lbs | Spindle Size | 1/4″ × 1 9/16″ |
| Overall Height | 2.96″ | Base Length | 1.18″ |
| Overall Length | 2.53″ | Plunger Diameter | .37″ |
| Model No | R141 | Bar Type | Through Hole Mount |
Product Features
Remarks
•Provides straight line clamping/positioning action•Most models can be locked over-center in either extended or retracted position•Useful in a wide range of applications beyond workholding•Handle must be allowed to rotate > 180° for over-center locking in retracted position - Handle will fall below mounting surface
