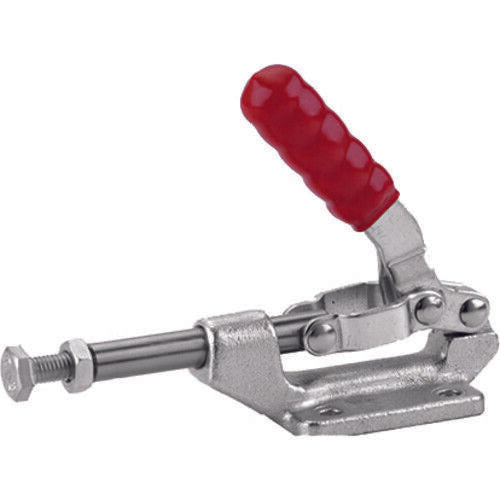

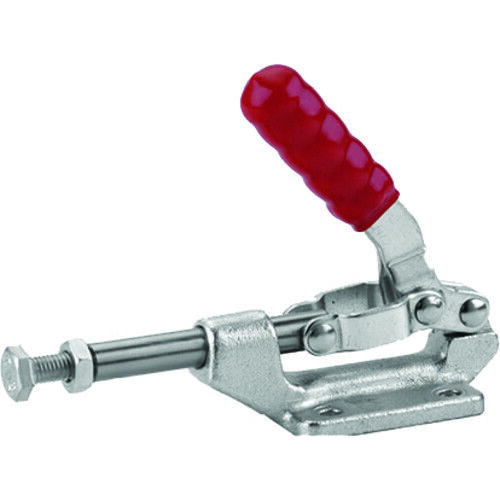

RapidHold 600lbs 5/16-18 Base Mount 45 Deg Handle Push Pull Toggle Clamp

PRODUCT DESCRIPTION

RAPIDHOLD

PUSH PULL TOGGLE CLAMP

Style	Push/Pull Toggle Clamp	Bar Style	Straight Line
Type	Toggle Clamp	Mounting Diameter	0.2200″
Arm	1.88″	Mounting Length	1.44″
Height Under Clamp Arm	.97″	Mounting Width	1.31″
Holding Capacity	600 lbs	Spindle Size	‎5/16'-18 × 1″
Overall Height	3.23″	Base Length	2.29″
Overall Length	4.90″	Plunger Diameter	.43″
Model No	R144	Bar Type	Through Hole Mount

Product Features

Remarks

•Provides straight line clamping/positioning action•Most models can be locked over-center in either extended or retracted position•Useful in a wide range of applications beyond workholding•Handle must be allowed to rotate > 180° for over-center locking in retracted position - Handle will fall below mounting surface
