Michigan Wholesale Tool Supply

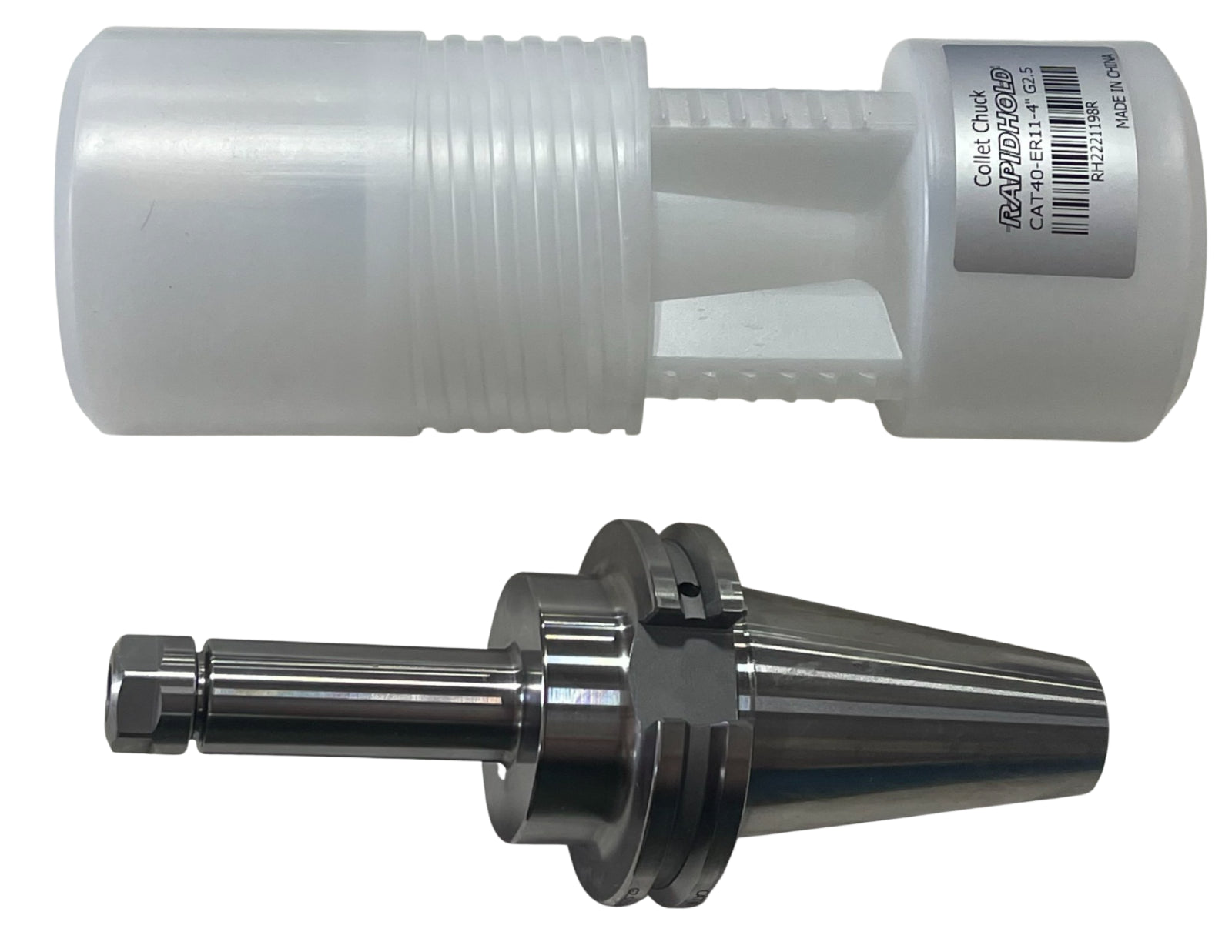

RapidHold CAT40 Collet Chuck ER11 X 4" G2.5 Balanced Tool Holder
RapidHold CAT40 Collet Chuck ER11 X 4" G2.5 Balanced Tool Holder
Regular price
$40.58 USD
Regular price
$0.00 USD
Sale price
$40.58 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
RAPIDHOLD
CAT40 COLLET CHUCK
Item #: RH2221198R
Manufacturer: Rapidhold
Mfg #: 21198R
Technical Specifications:
*Brand Name: Rapidhold *Collet Style: ER11 *Head Length/Projection: 4.00 *Mount: CAT40 *Nose Diameter: .79 *Overall Length: 6.68 *Size/Range: .0190 - .2760 *Type: Collet Chuck *Weight: 3.1 lbs
Description:
*Taper Shank ground to AT3 accuracy or better *Taper to Taper Runout <0.0002" *Balanced G2.5 @ 20,000 RPM *Coolant thru the spindle and DIN AD+B thru the flange capable
Manufacturer: Rapidhold
Mfg #: 21198R
Technical Specifications:
*Brand Name: Rapidhold *Collet Style: ER11 *Head Length/Projection: 4.00 *Mount: CAT40 *Nose Diameter: .79 *Overall Length: 6.68 *Size/Range: .0190 - .2760 *Type: Collet Chuck *Weight: 3.1 lbs
Description:
*Taper Shank ground to AT3 accuracy or better *Taper to Taper Runout <0.0002" *Balanced G2.5 @ 20,000 RPM *Coolant thru the spindle and DIN AD+B thru the flange capable
