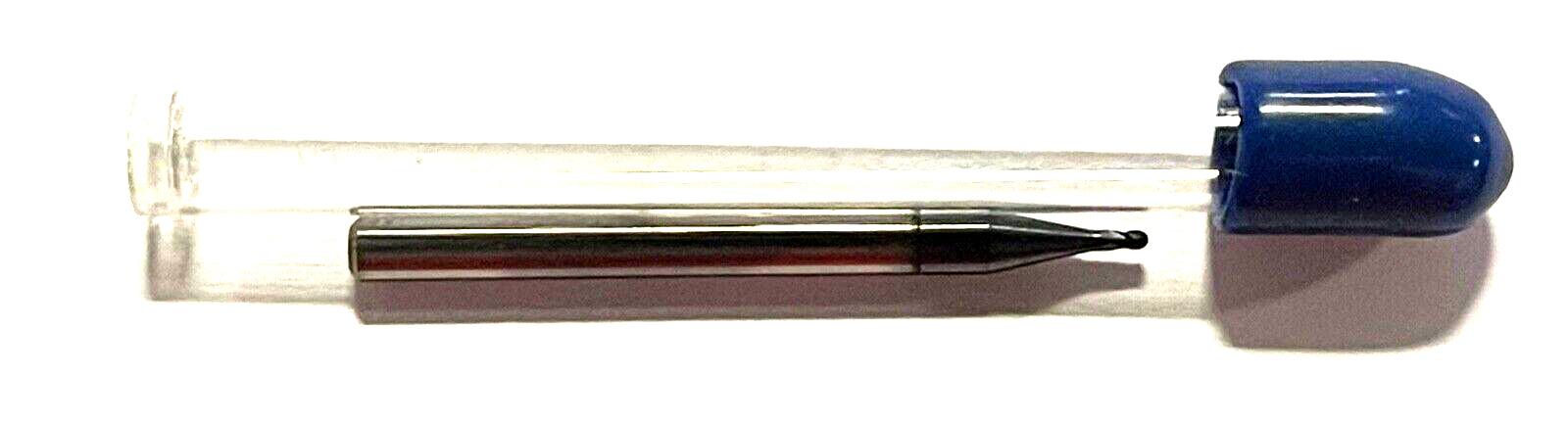

RapidKut 0.037" Carbide End Mill Ball Nosed AlTiN Coated 4 Flute USA Made
RapidKut 0.037" Carbide End Mill Ball Nosed AlTiN Coated 4 Flute USA Made
Regular price
$5.33 USD
Regular price
$0.00 USD
Sale price
$5.33 USD
Unit price
/
per
Shipping calculated at checkout.
14 in stock
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE END MILL
| Cutting Diameter (DC) | 0.037″ | Usable Length (LU) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.056″ | Body Half Taper Angle (BHTA) | 30 Degrees |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | AlTiN | Style | Ball Nose |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.037″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round |
Product Features
Remarks
•Center cutting
•30° Helix
•Good for materials less than HRc 48
•Tolerance +/- .0005″
•AlTiN coating is ideal for high temperature cutting operations in many materials such as titanium and nickel alloys, Co-Cr-Mo, stainless steel, alloy steels and cast iron
