Michigan Wholesale Tool Supply

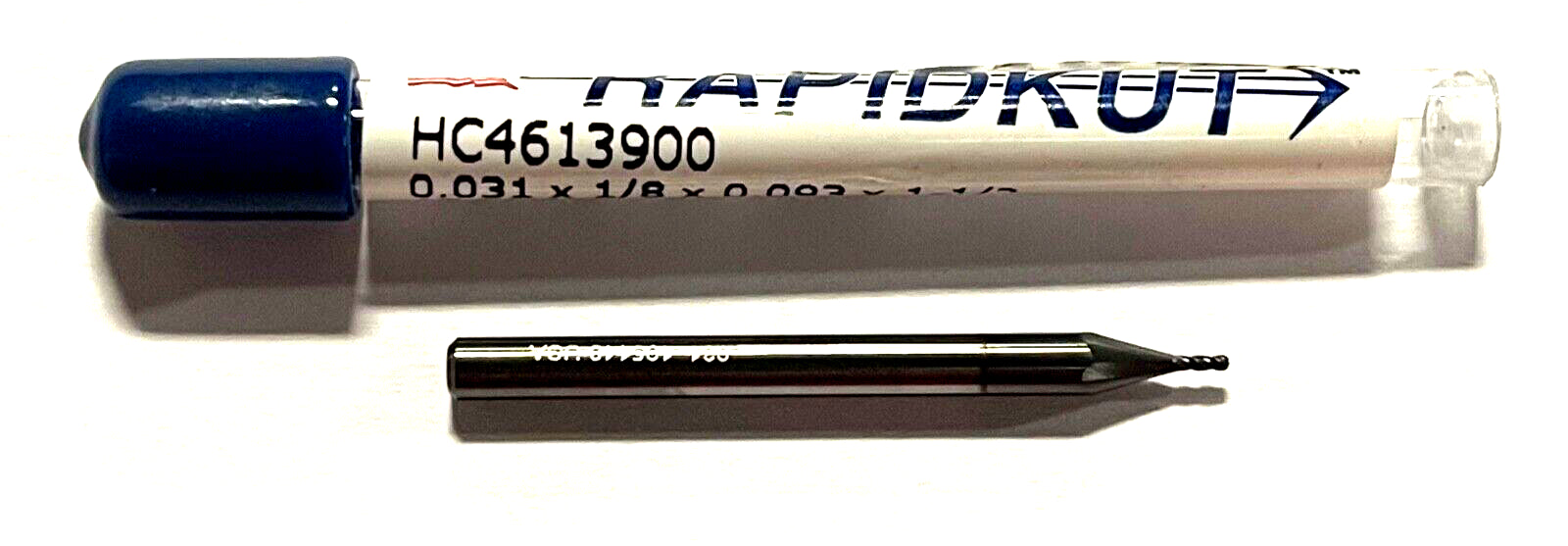

RapidKut .031" Miniature Carbide Ball End Mill Diamond Coated 4 Flute 30° Helix
RapidKut .031" Miniature Carbide Ball End Mill Diamond Coated 4 Flute 30° Helix
Regular price
$6.18 USD
Regular price
$0.00 USD
Sale price
$6.18 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
13 in stock
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE MINIATURE BALL END MILL
| Cutting Diameter (DC) | 0.031″ | Usable Length (LU) | 1/8″ |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Applicable Material | Carbide |
| Depth of Cut Maximum (APMX) | 0.093″ | Body Half Taper Angle (BHTA) | 30 Degrees |
| Overall Length (OAL) | 1-1/2″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | DLC | Style | Ball Nose |
| Flute Count (NOF) | 4 | Decimal Equivalent | 0.031″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round |
Product Features
Remarks
•Center cutting
•30° Helix
•Good for materials less than HRc 48
•Tolerance +/- .0005″
•PCD (Amorphous DLC) Diamond coating for increased lubricity in non-ferrous materials.
