Michigan Wholesale Tool Supply

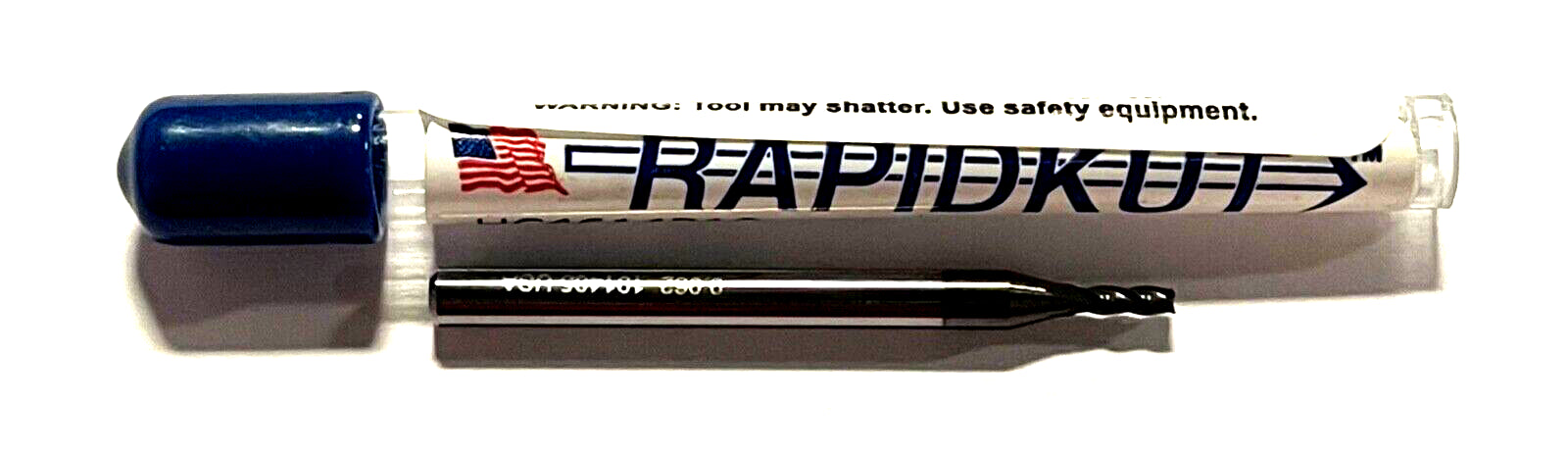

RapidKut .062" Miniature Carbide End Mill Diamond Coated 4 Flute 30° Helix USA
RapidKut .062" Miniature Carbide End Mill Diamond Coated 4 Flute 30° Helix USA
Regular price
$5.28 USD
Regular price
$0.00 USD
Sale price
$5.28 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 10 left
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE MINIATURE END MILL
| Cutting Diameter (DC) | 0.062″ | Coating | DLC |
| Connection Diameter Machine Side (DCONMS) | 1/8″ | Flute Count (NOF) | 4 |
| Depth of Cut Maximum (APMX) | 0.186″ | Flute Helix Angle (FHA) | 30 Degrees |
| Overall Length (OAL) | 1-1/2″ | Tool Type | Center Cut |
| Cutting Edge Material | Carbide | Decimal Equivalent | 0.062″ |
Product Features
Remarks
•Center cutting
•30° Helix
•Good for materials less than HRc 48
•Tolerance +/- .0005″
•PCD (Amorphous DLC) Diamond coating for increased lubricity in non-ferrous materials.
