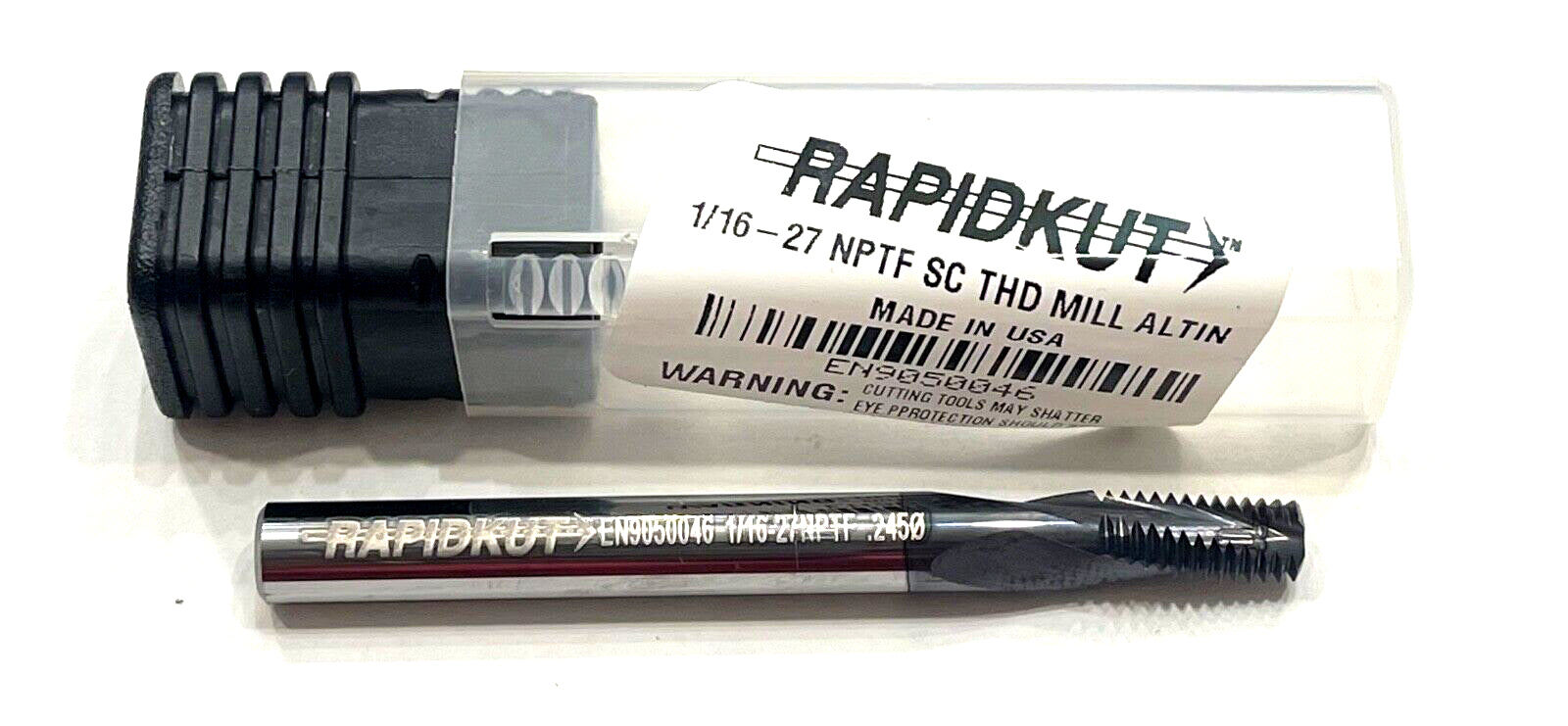

RapidKut 1/16"-27 Solid Carbide Thread Mill AlTiN Coating Helical Flute USA Made
RapidKut 1/16"-27 Solid Carbide Thread Mill AlTiN Coating Helical Flute USA Made
Regular price
$17.83 USD
Regular price
$0.00 USD
Sale price
$17.83 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
18 in stock
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE THREAD MILL
| Thread Size | 1/16″ | Flute Count (NOF) | 3 |
| Threads per Inch (TPI) | 27 | Coating | ALTIN |
| Thread Standard | | NPTF | | Flute Type | Helical |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Usable Length (LU) | 7/16″ |
| Cutting Diameter (DC) | 0.245″ | Measurement Type | Pipe |
| Overall Length (OAL) | 2-1/2″ | Tool Type | Pipe-NPTF |
Product Features
Remarks
•Helical Flute Thread Mills ? NPT, NPTF, Pipe Threads
•Shank Diameter -.0001 to -.0003″Cutter Diameter ±.0005″Length of Cut +.050 to .000″Overall Length ±.015″T.I.R. Maximum .0005″
•Completely CNC ground.
•Helical flute design for reduced cutting forces, smoother cuts, longest tool life, and maximum thread milling performance.
•100% thread form; superior threads vs. tapping.
•Cuts right hand and left hand high quality threads.
•Suitable for all types of materials, including heat treated and difficult to machine workpieces.
•Morse Cutting Tools: Supplied with AlTiN coating only
