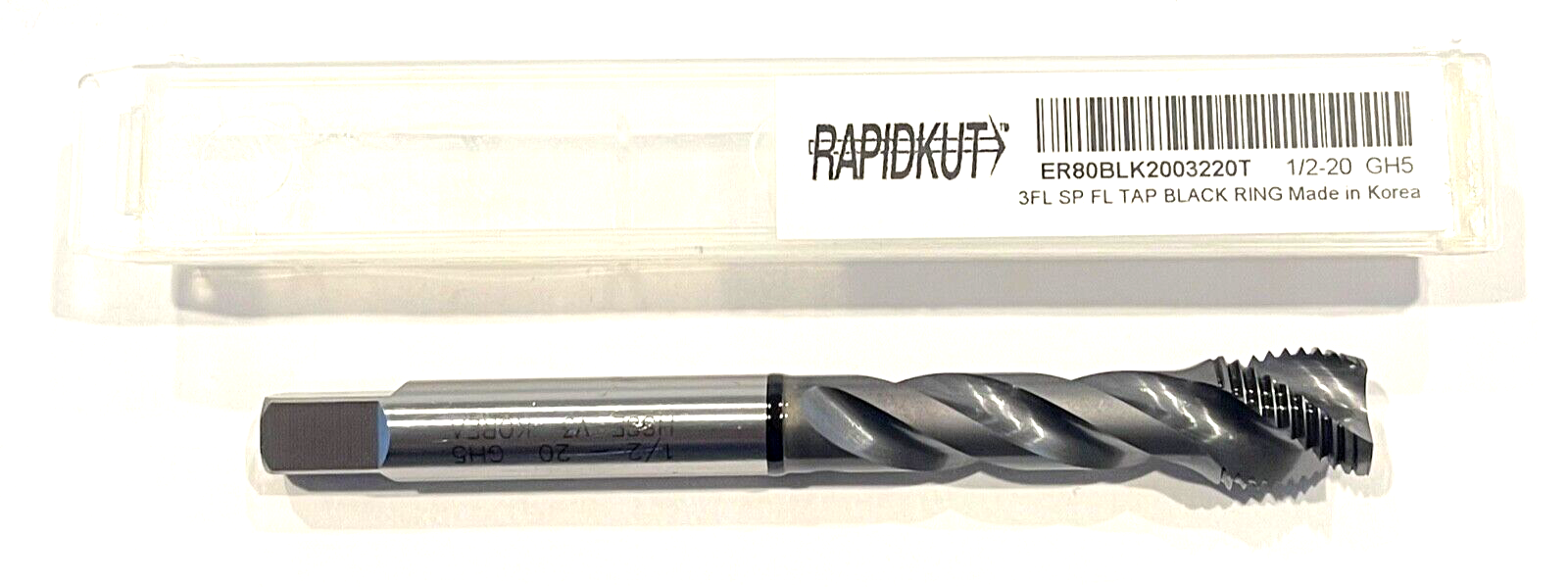

RapidKut 1/2-20 Tap High Performance Semi Bottoming Black Ring TiCN 3FL H5

PRODUCT DESCRIPTION

RAPIDKUT

HIGH PERFORMANCE SPIRAL FLUTE SEMI BOTTOMING TAP

Thread Diameter Size (TDZ)	1/2″	Cutting Edge Material	High Vanadium Steel
Threads per Inch (TPI)	20	Thread Tolerance Class (TCTR)	H5
Thread Standard	NF	Special Feature	Black Ring
Overall Length (OAL)	3.94″	Coating	TICN
Thread Cutting Part Length (THL)	0.472″	Flute Type	Spiral
Connection Diameter Machine Side (DCONMS)	0.367″	End Shape	Spiral Flute
Flute Count (NOF)	3	Style	Semi-Bottoming
Cutting Length	0.472″	Coolant Supply Property (CSP)	External
Applicable Material	General Purpose	Measurement Type	Fractional
