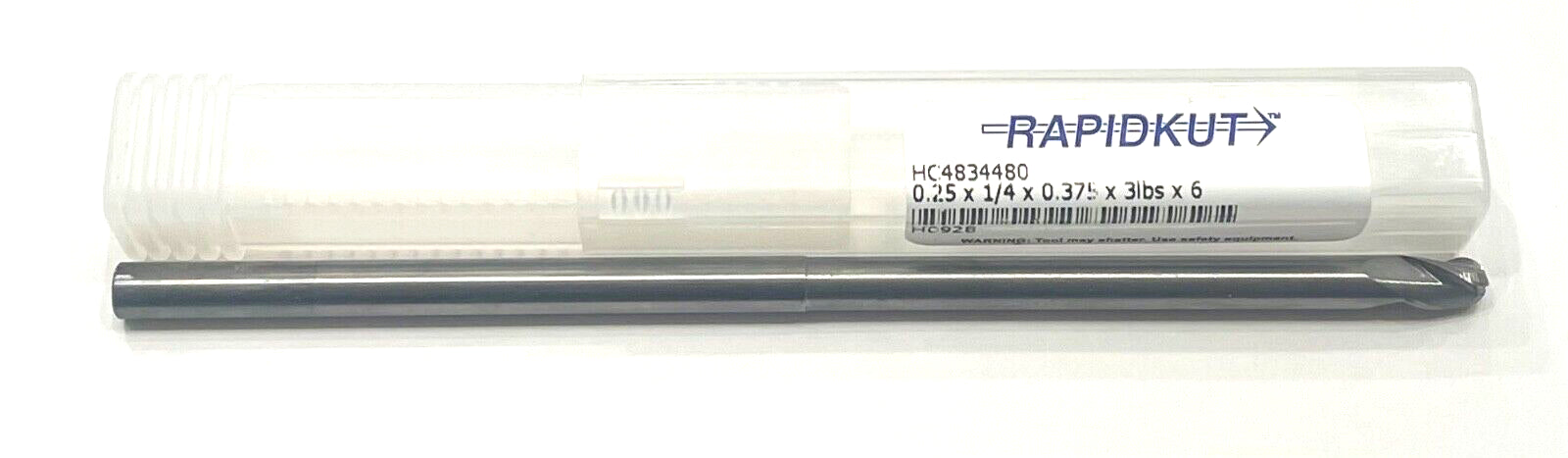

RapidKut 1/4" Carbide Ball Nose End Mill 3FL Necked 6" OAL USA Made
RapidKut 1/4" Carbide Ball Nose End Mill 3FL Necked 6" OAL USA Made
Regular price
$9.10 USD
Regular price
$0.00 USD
Sale price
$9.10 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 1/4″ | Usable Length (LU) | 3″ |
| Connection Diameter Machine Side (DCONMS) | 1/4″ | Applicable Material | | Carbide | |
| Depth of Cut Maximum (APMX) | 3/8″ | Body Half Taper Angle (BHTA) | 30 Degrees |
| Overall Length (OAL) | 6″ | End Shape | Ball Nose |
| Cutting Edge Material | Carbide | Coolant Supply Property (CSP) | External |
| Coating | Uncoated | Style | Ball Nose |
| Flute Count (NOF) | 3 | Decimal Equivalent | 0.25″ |
| Flute Helix Angle (FHA) | 30 Degrees | Measurement Type | Inch |
| Shank Type | Round |
Product Features
Remarks
•Center cutting
•30° Helix
•Good for materials less than HRc 48
•Tolerance +/- .0005″ < 1/8 +.000 - .002″ > 1/8
