Michigan Wholesale Tool Supply

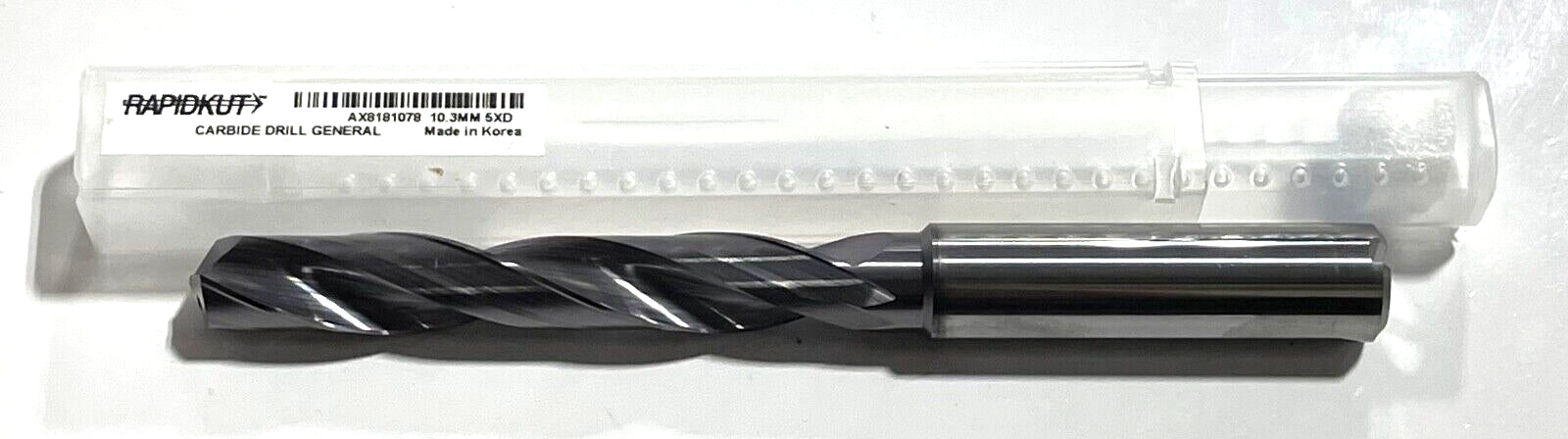

RapidKut 10.3mm Solid Carbide Drill 5xD TiAlN Coated 140° Point Coolant Thru 2FL
RapidKut 10.3mm Solid Carbide Drill 5xD TiAlN Coated 140° Point Coolant Thru 2FL
Regular price
$22.93 USD
Regular price
$0.00 USD
Sale price
$22.93 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 10 left
Couldn't load pickup availability
RAPIDKUT
SOLID CARBIDE COOLANT THRU DRILL
| Drill Bit Size / Cutting Diameter (DC) | 10.3 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 10.3 mm | Tool Type | Drill |
| Length Group | 5xD | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 71 mm |
| Connection Diameter Machine Side (DCONMS) | 12 mm | Length Chip Flute (LCF) | 71 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 118 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
