Michigan Wholesale Tool Supply

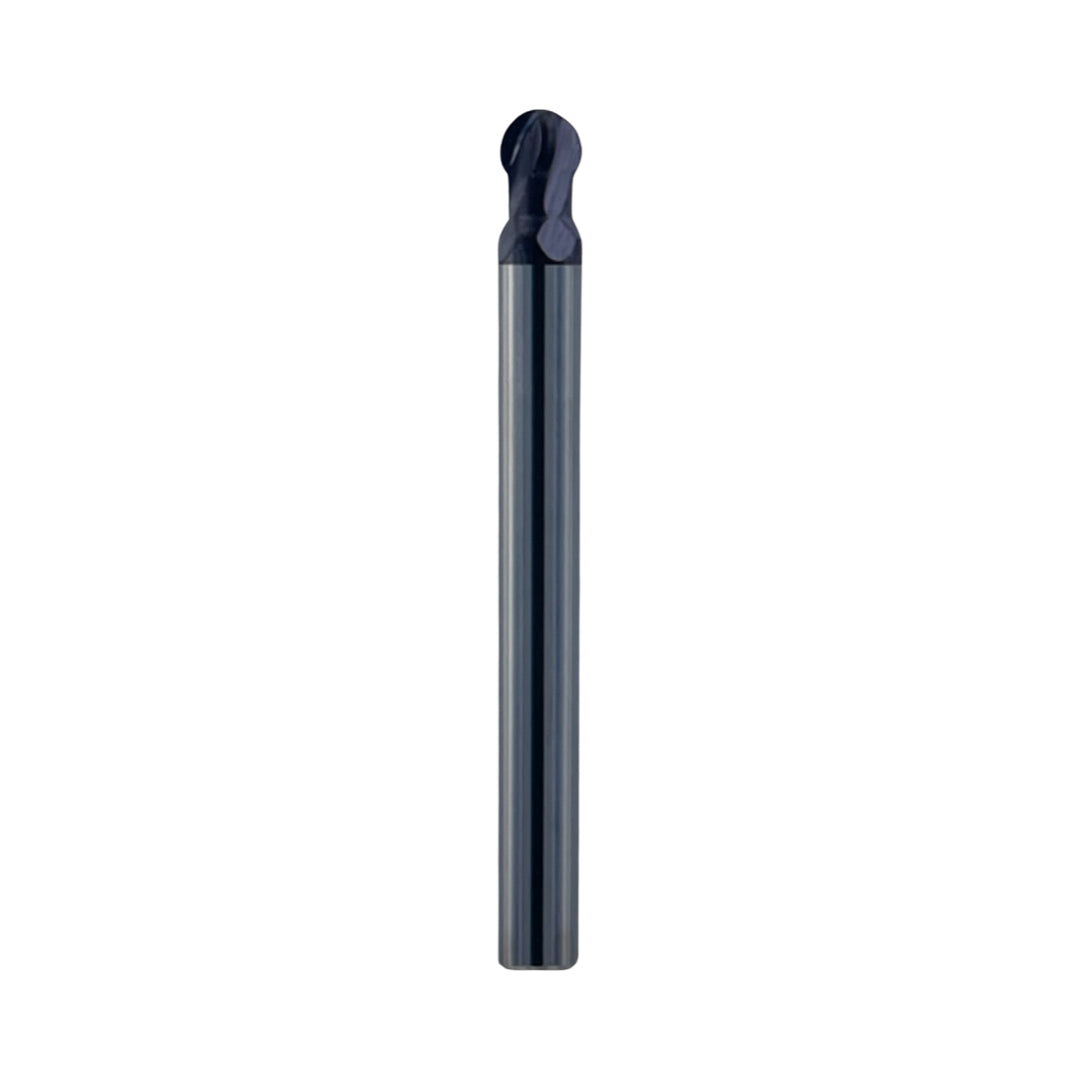

RapidKut 3/16" Carbide Spherical Ball Nose End Mill 300° 4FL nACo .611" Reach
RapidKut 3/16" Carbide Spherical Ball Nose End Mill 300° 4FL nACo .611" Reach
Regular price
$9.46 USD
Regular price
$0.00 USD
Sale price
$9.46 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE SPHERICAL CARBIDE BALL NOSE END MILL
| Cutting Diameter (DC) | 3/16″ | Usable Length (LU) | 0.611″ |
| Connection Diameter Machine Side (DCONMS) | 3/16″ | Applicable Material | | Carbide | |
| Depth of Cut Maximum (APMX) | 0.174″ | Neck Diameter (DN) | 0.082″ |
| Overall Length (OAL) | 2″ | Neck Length (LN) | 0.437″ |
| Cutting Edge Material | Carbide | End Shape | Ball Nose |
| Coating | nACo | Coolant Supply Property (CSP) | External |
| Flute Count (NOF) | 4 | Style | 300 Degrees Spherical Ball |
| Flute Helix Angle (FHA) | 15 Degrees | Decimal Equivalent | 0.1875″ |
| Shank Type | Round | Measurement Type | Inch |
