Michigan Wholesale Tool Supply

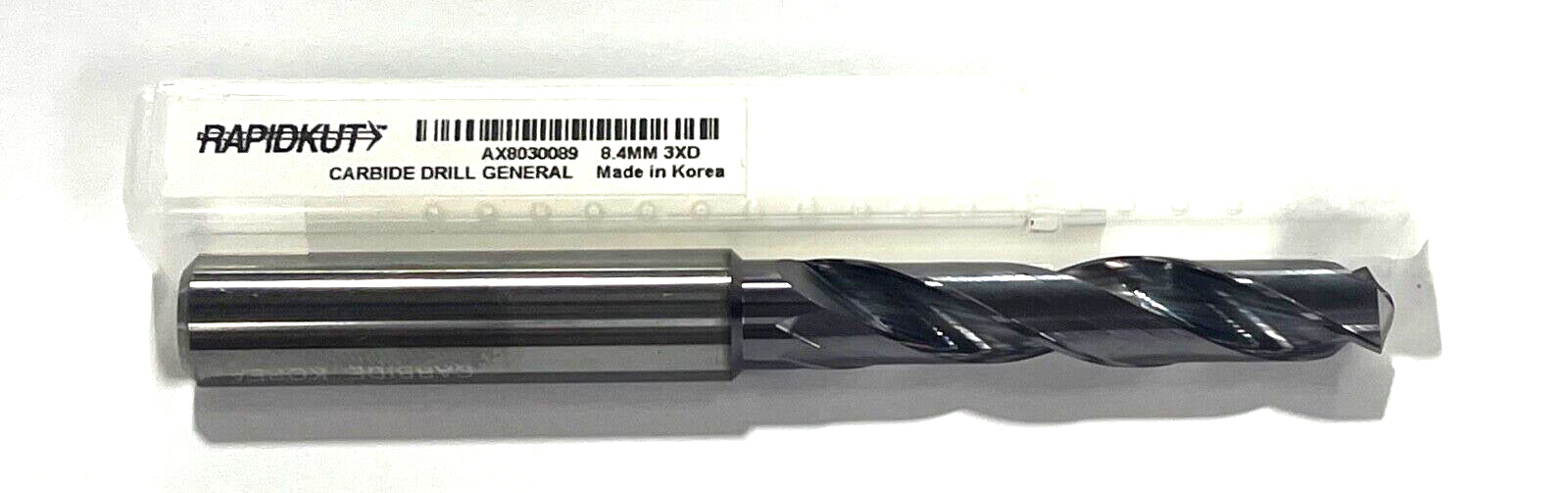

RapidKut 8.4mm Solid Carbide Drill 3xD TiAlN Coating 2 Flute AX8030089
RapidKut 8.4mm Solid Carbide Drill 3xD TiAlN Coating 2 Flute AX8030089
Regular price
$10.55 USD
Regular price
$0.00 USD
Sale price
$10.55 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 10 left
Couldn't load pickup availability
RAPIDKUT
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 8.4 mm | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 8.4 mm | Tool Type | Drill |
| Length Group | 3xD | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 47 mm |
| Connection Diameter Machine Side (DCONMS) | 0.305 mm | Length Chip Flute (LCF) | 47 mm |
| Coolant Supply Property (CSP) | External | Overall Length (OAL) | 89 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
| Shank Type | Round |
Product Features
Remarks
•For use in a wide variety of materials including carbon steel, alloy steel, stainless steel, hardened steel, cast iron, aluminum alloys, titanium and others
•140° Point and 30° helix high performance geometry allows for high penetration rates
•These high penetration drills provide accurate hole sizing as well as near burnished holes
•TiAlN coated.
