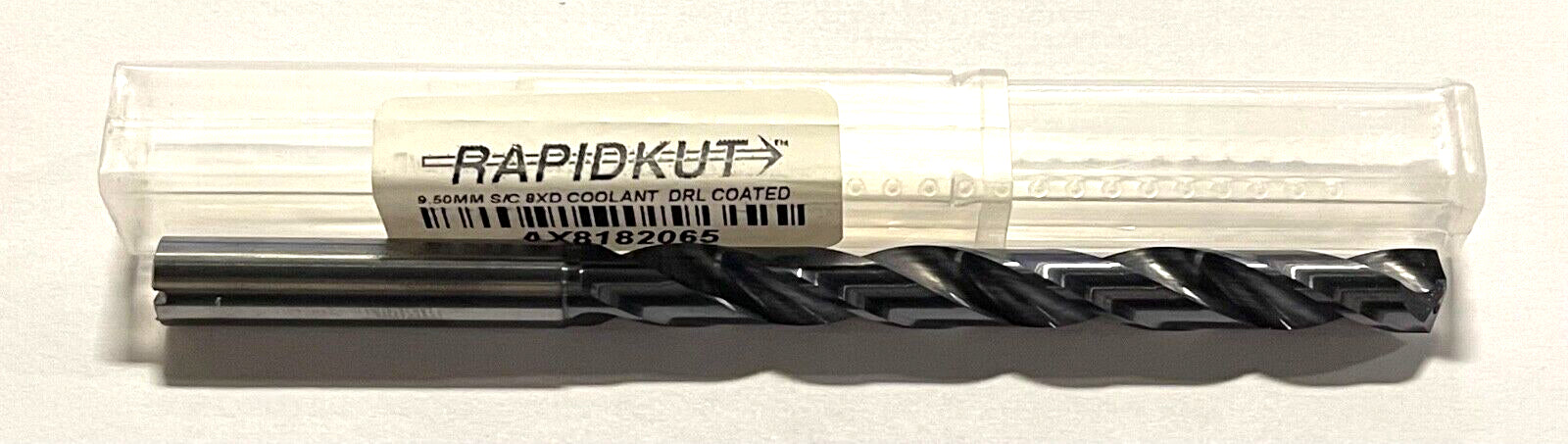

RapidKut 9.50mm Solid Carbide Drill 8xD TiAlN Coating Coolant Thru 2 Flute USA
RapidKut 9.50mm Solid Carbide Drill 8xD TiAlN Coating Coolant Thru 2 Flute USA
Regular price
$25.48 USD
Regular price
$0.00 USD
Sale price
$25.48 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 3 left
Couldn't load pickup availability
RAPIDKUT
USA MADE
SOLID CARBIDE DRILL
| Drill Bit Size / Cutting Diameter (DC) | 9.5 mm | Shank Type | Round |
| Decimal Equivalent | 0.374″ | Cutting Edge Material | Carbide |
| Drill Bit Size / Cutting Diameter (DC) - Metric | 9.5 mm | Tool Type | Drill |
| Length Group | 8xD | Measurement Type | Metric |
| Coating | TiAlN | Usable Length (LU) | 95 mm |
| Connection Diameter Machine Side (DCONMS) | 10 mm | Length Chip Flute (LCF) | 95 mm |
| Coolant Supply Property (CSP) | Coolant Thru | Overall Length (OAL) | 142 mm |
| Point Angle (SIG) | 140 Degrees | Flute Count (NOF) | 2 |
| Flute Helix Angle (FHA) | 30 Degrees | Cutting Direction (HAND) | Right Hand |
