67 in stock

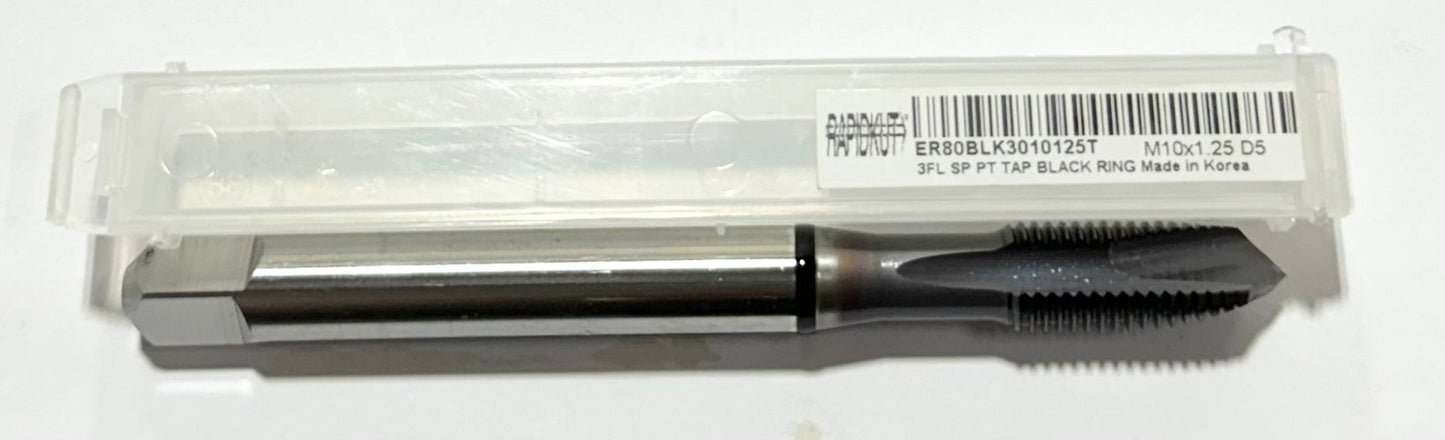

RapidKut M10 x 1.25mm HSSE-V3 Spiral Point Plug Tap Black Ring D5 TiCN Coated

PRODUCT DESCRIPTION

Thread Standard	Metric	Flute Count (NOF)	3
Thread Size	M10 × 1.25	Cutting Edge Material	High Vanadium Steel
Thread Diameter Size (TDZ)	M10	Special Feature	Black Ring
Thread Pitch (TP)	1.25 mm	Applicable Material	General Purpose
Thread Tolerance Class (TCTR)	D5	Connection Diameter Machine Side (DCONMS)	0.381″
Usable Length (LU)	0.748″	Thread Cutting Part Length (THL)	0.748″
Overall Length (OAL)	3.94″	End Shape	Spiral Point
Chamfer	Plug	Coolant Supply Property (CSP)	No
Coating	TiCN	Measurement Type	Metric
