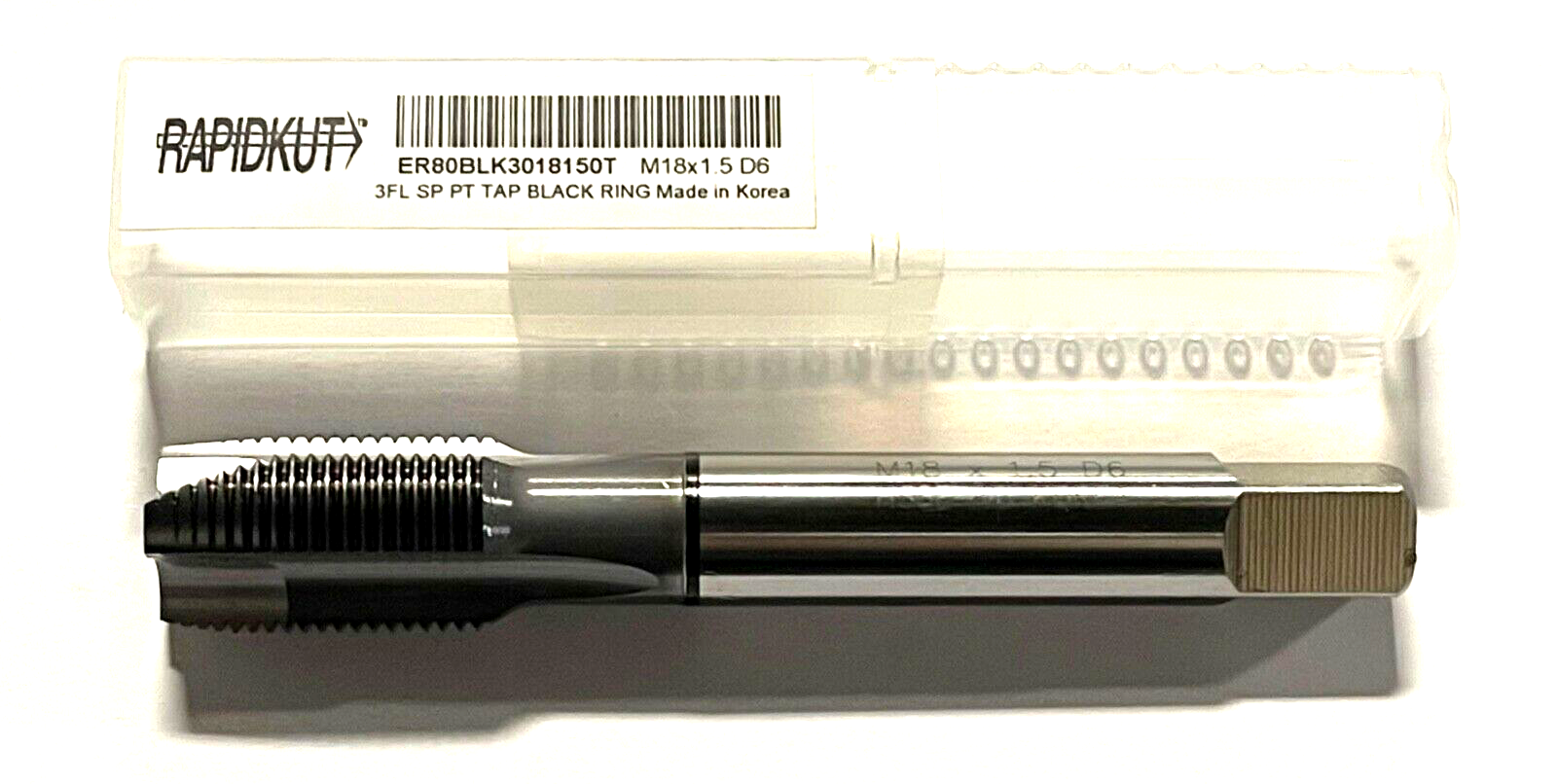

RapidKut M18 x 1.5 HSSE-V3 Spiral Point Plug Tap TiCN Coating Black Ring D6 3FL

PRODUCT DESCRIPTION

RAPIDKUT

HSSE-V SPIRAL POINT HIGH PERFORMANCE TAP

Thread Standard	Metric	Flute Count (NOF)	3
Thread Size	M18 × 1.5	Cutting Edge Material	High Vanadium Steel
Thread Diameter Size (TDZ)	M18	Special Feature	Black Ring
Thread Pitch (TP)	1.5 mm	Applicable Material	General Purpose
Thread Tolerance Class (TCTR)	D6	Connection Diameter Machine Side (DCONMS)	0.542″
Usable Length (LU)	1.083″	Thread Cutting Part Length (THL)	1.083″
Overall Length (OAL)	3.94″	End Shape	Spiral Point
Chamfer	Plug	Coolant Supply Property (CSP)	No
Coating	TiCN	Measurement Type	Metric
