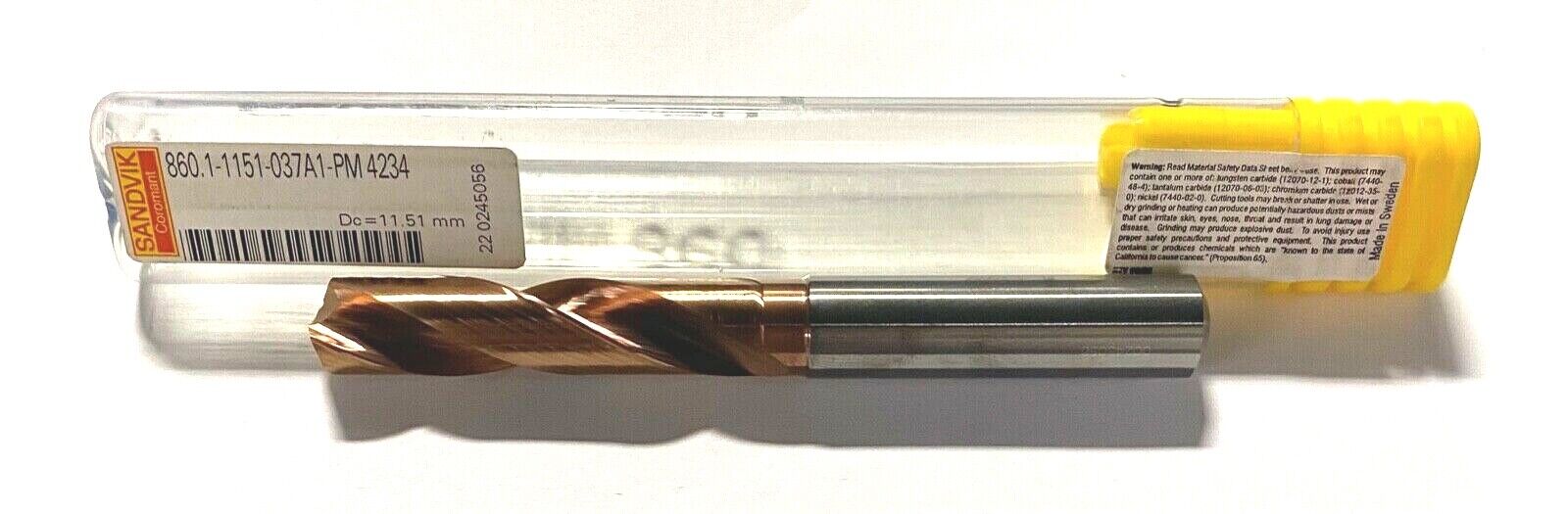

Sandvik 11.51mm Solid Carbide CoroDrill PVD TIALN Coated 102mm Overall Length
Sandvik 11.51mm Solid Carbide CoroDrill PVD TIALN Coated 102mm Overall Length
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
Low stock: 6 left
Couldn't load pickup availability
Sandvik 11.51mm Solid Carbide CoroDrill PVD TIALN Coated 102mm Overall Length
PRODUCT DESCRIPTION
Cutting diameter (DC)11.51 mm
Achievable hole tolerance (TCHA)H8
Usable length (LU)36.4 mm
Usable length diameter ratio (ULDR)3.163
Adaptive interface machine direction (ADINTMS)Cylindrical shank (DIN6535-HA) -metric: 12
Connection diameter tolerance (TCDCON)h6
Grade (GRADE)4234
Substrate (SUBSTRATE)HC
Coating (COATING)PVD TIALN
Basic standard group (BSG)DIN 6537 K
Coolant entry style code (CNSC)4: axial concentric entry on circle
Coolant pressure (CP)20 bar
Connection diameter (DCON)12 mm
Point angle (SIG)147 deg
Point length (PL)1.9 mm
Overall length (OAL)102 mm
Functional length (LF)100.1 mm
Chip flute length (LCF)55 mm
Maximum regrinds (NORGMX)3
Rotational speed maximum (RPMX)6914 1/min
Weight of item (WT)0.136 kg
Sensor embedded property (SEP)0
