Michigan Wholesale Tool Supply

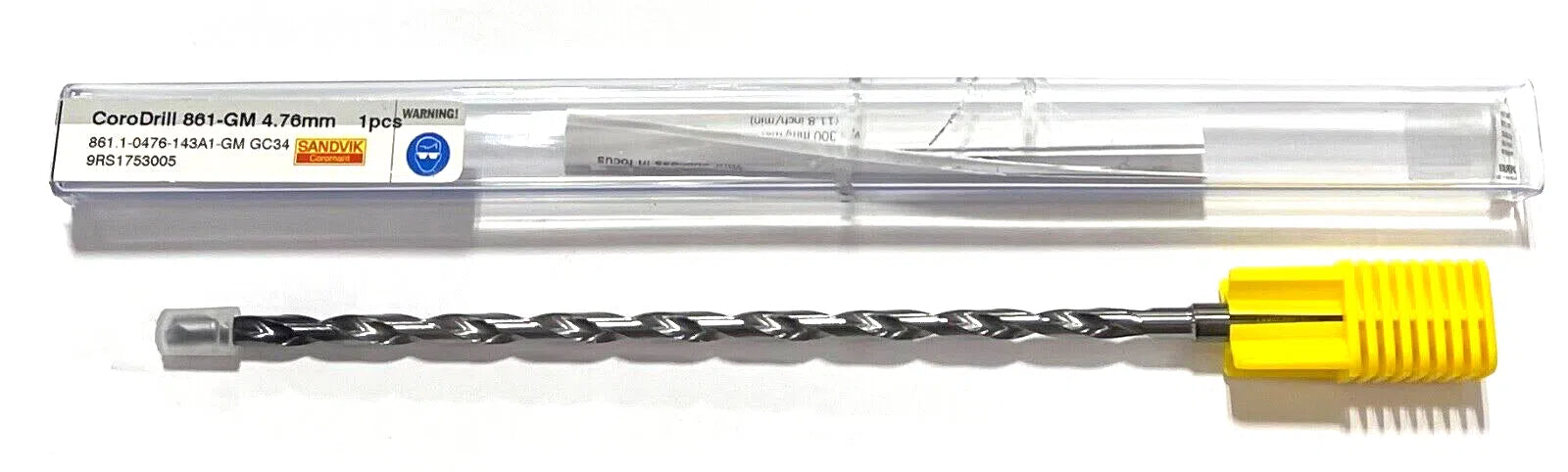

Sandvik 4.76mm Solid Carbide Drill 30xD Coolant Thru PVD TiAlN Coating 2 Flute
Sandvik 4.76mm Solid Carbide Drill 30xD Coolant Thru PVD TiAlN Coating 2 Flute
Regular price
$80.08 USD
Regular price
$0.00 USD
Sale price
$80.08 USD
Unit price
/
per
Shipping calculated at checkout.
Low stock: 2 left
Couldn't load pickup availability
SANDVIK
SOLID CARBIDE DRILL
Cutting diameter(DC)
0.1874 inch
Achievable hole tolerance(TCHA)
H9
Usable length(LU)
5.6535 inch
Usable length diameter ratio(ULDR)
30.168
Adaptive interface machine direction(ADINTMS)
Cylindrical shank (DIN6535-HA) -metric: 6
Connection diameter tolerance(TCDCON)
h6
Grade(GRADE)
GC34
Substrate(SUBSTRATE)
HC
Coating(COATING)
PVD TiAlN
Basic standard group(BSG)
COROMANT
Coolant entry style code(CNSC)
4: axial concentric entry on circle
Coolant pressure(CP)
290.075 lbf/in2
Connection diameter(DCON)
0.2362 inch
Point angle(SIG)
140 deg
Point length(PL)
0.0315 inch
Overall length(OAL)
7.8346 inch
Functional length(LF)
7.811 inch
Chip flute length(LCF)
6.1811 inch
Maximum regrinds(NORGMX)
3
