Michigan Wholesale Tool Supply

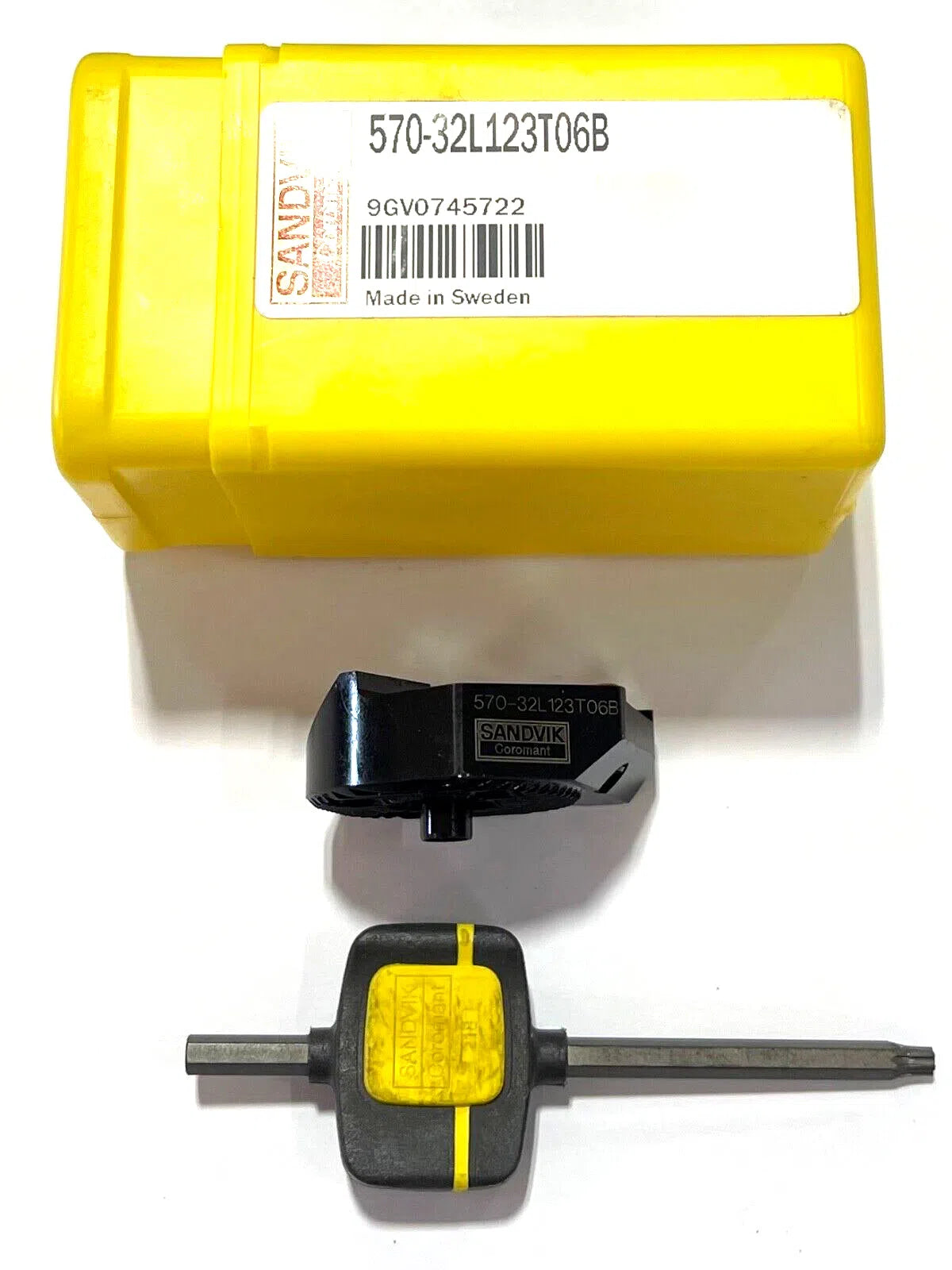

Sandvik 570-32L123T06B CoroCut 3 Head For Grooving 5764587
Sandvik 570-32L123T06B CoroCut 3 Head For Grooving 5764587
Regular price
$30.21 USD
Regular price
$0.00 USD
Sale price
$30.21 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
SANDVIK
Product data
Cutting depth maximum(CDX)
0.25 inch
Clamping type code(MTP)
S
Part 2 of cutting item interface identifiers(CUTINT_MASTER)
CoroCut 3 -style T (N123T3-CM)
Insert seat size code(SSC)
T
Adaptive interface machine direction(ADINTMS)
SL head (screw mounted) -size 32
Workpiece side body angle(BAWS)
90 deg
Maximum overhang(OHX)
0.5512 inch
Hand(HAND)
L
Coolant entry style code(CNSC)
1: axial concentric entry
Coolant exit style code(CXSC)
2: radial exit
Coolant pressure(CP)
145.0377 lbf/in2
Connection diameter machine side(DCONMS)
1.2598 inch
Functional length(LF)
0.5512 inch
Functional width(WF)
1.122 inch
Functional height(HF)
0 inch
Torque(TQ)
2.2127 ft lbf
Weight of item(WT)
0.2257 lb
Release date(ValFrom20)
9/9/07
Release pack id(RELEASEPACK)
07.2
