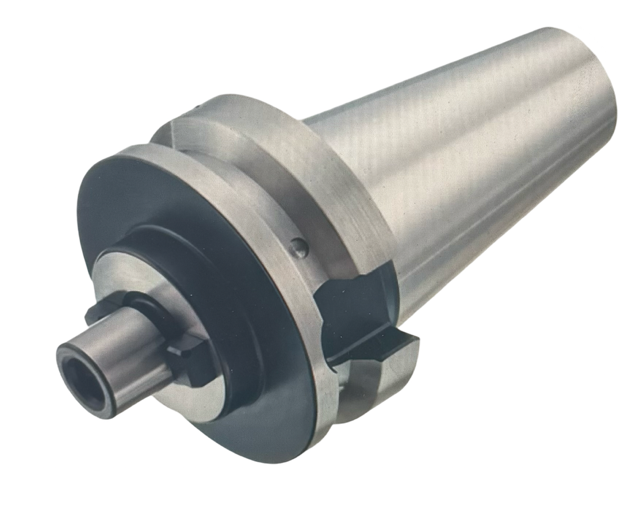

Sandvik A2B05-50 32 100 MAS-BT 403 to Arbor Adaptor
Sandvik A2B05-50 32 100 MAS-BT 403 to Arbor Adaptor
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 2 left
Couldn't load pickup availability
Sandvik A2B05-50 32 100 MAS-BT 403 to Arbor Adaptor
PRODUCT DESCRIPTION
Connection - machine side (ADINTMS):
MAS-BT403 -AD/B central/flange coolant - BT50
Connection - workpiece side (ADINTWS):
Arbor - ISO 6462 - A/B (center bolt/washer) - metric: 32
Coolant entry style (CNSC):
decentral over flange and axial
Coolant exit style (CXSC):
axial concentric on circle
Coolant pressure (CP):
1,160.3019 lbf/in²
Data chip pocket (DCP):
Yes
Data chip pocket size (DCPS):
Dia.=10 mm / Height=4.5 mm
Functional diameter (DFC):
2.75 inch
Connection retention knob thread size (CRKS):
Metric M24
Connection diameter workpiece side (DCONWS):
1.2598 inch
Kappa (z-axis rot) (KAP):
0°
Functional length (LF):
3.937 inch
Body diameter (BD_1):
3.0709 inch
Body diameter (BD_2):
3.937 inch
Body length (LB_1):
2.3228 inch
Body length (LB_2):
3.937 inch
