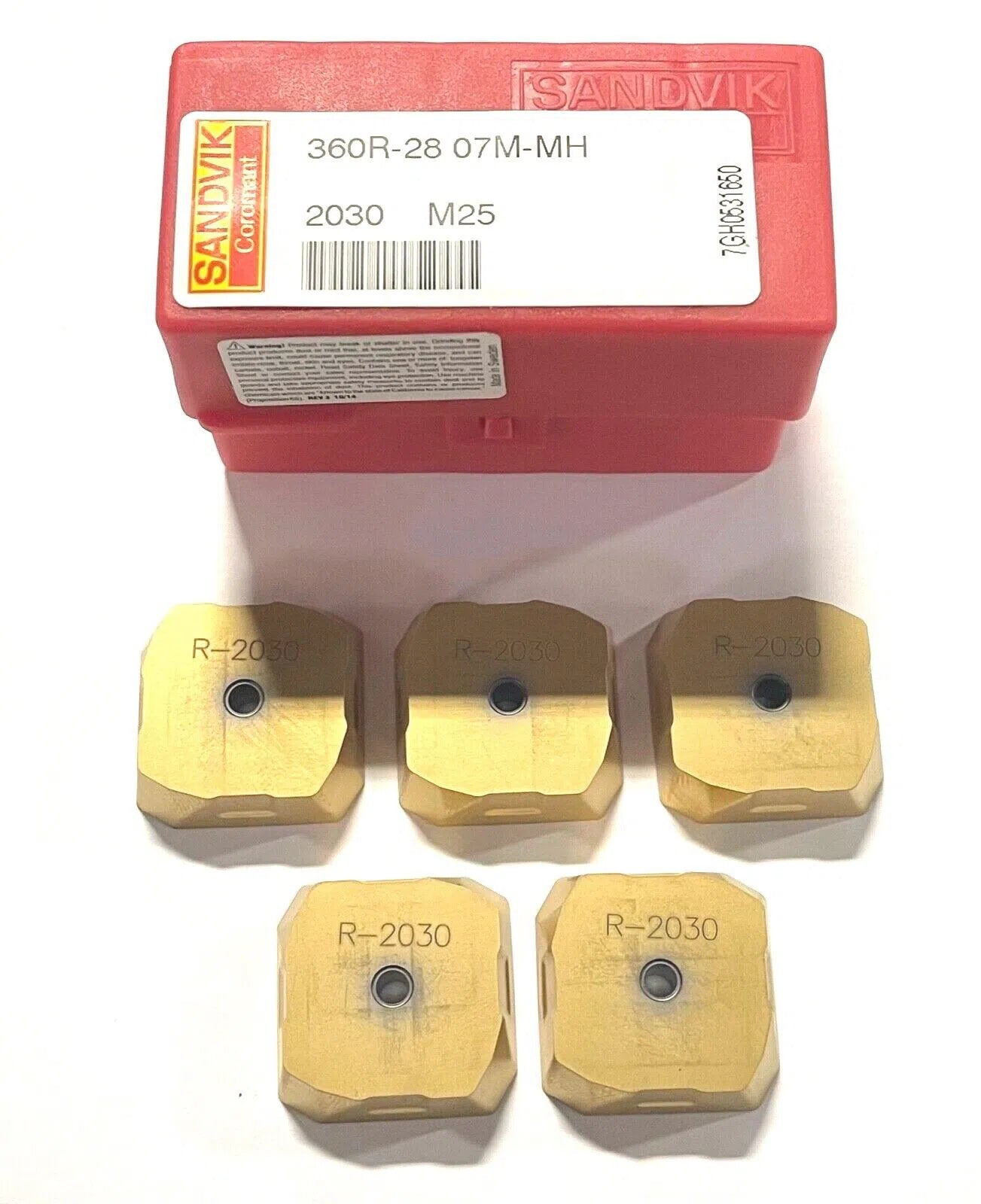

Sandvik CoroMill 360 Carbide Milling Inserts 360R-28 07M-MH Grade 2030 5 Pack

Sandvik CoroMill 360 Carbide Milling Inserts 360R-28 07M-MH Grade 2030 5 Pack

Regular price $28.02 USD
Regular price $0.00 USD Sale price $28.02 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.

Low stock: 1 left

SANDVIK

CARBIDE MILLING INSERTS

5 PACK

COROMILL 360

Material classification level 1 (TMC1ISO)PM

Operation type (CTPT)Heavy

Insert size and shape (CUTINTSIZESHAPE)CoroMill 360 -2807

Insert mounting style code (IFS)

Cutting edge count (CEDC)

Inscribed circle diameter (IC)28.47 mm

Insert shape code (SC)

Cutting edge effective length (LE)20 mm

Wiper edge length (BS)4.6 mm

Wiper edge radius (BSR)200 mm

Corner radius (RE)1.7 mm

Major cutting edge angle (KRINS)60 deg

Hand (HAND)

Grade (GRADE)2030

Substrate (SUBSTRATE)HC

Coating (COATING)PVD TiAlN+TiN

Insert thickness (S)7.94 mm

Weight of item (WT)0.08 kg

Depth of cut maximum (APMX)18 mm

Sensor embedded property (SEP)
