Michigan Wholesale Tool Supply

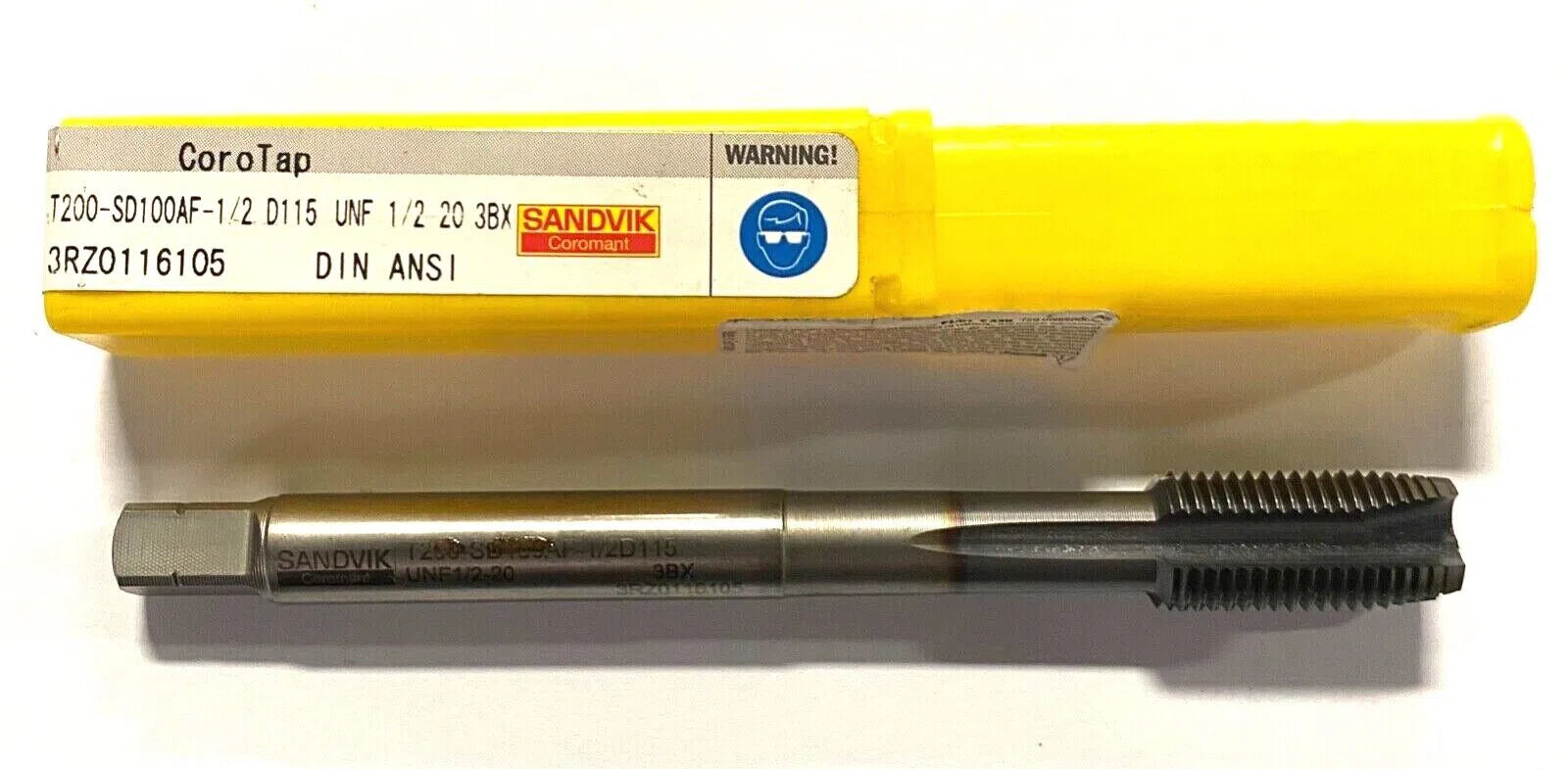

Sandvik CoroTap 1/2-20NF Cobalt Spiral Point Tap TiCN Coated 3BX 4 Flute
Sandvik CoroTap 1/2-20NF Cobalt Spiral Point Tap TiCN Coated 3BX 4 Flute
Regular price
$14.19 USD
Regular price
$0.00 USD
Sale price
$14.19 USD
Unit price
/
per
Shipping calculated at checkout.
Free Shipping:
Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our
Shipping Policy for more details.
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details.
15 in stock
Couldn't load pickup availability
SANDVIK
COBALT SPIRAL POINT TAP
| Thread Diameter Size (TDZ) | 1/2″ | Cutting Edge Material | HSSCoPM |
| Threads per Inch (TPI) | 20 | Thread Tolerance Class (TCTR) | 3BX |
| Thread Standard | NF | Standard | ANSI|DIN |
| Overall Length (OAL) | 110 mm | Coating | TiCN |
| Thread Cutting Part Length (THL) | 23 mm | Flute Type | Straight |
| Usable Length (LU) | 81.8 mm | End Shape | Spiral Point |
| Connection Diameter Machine Side (DCONMS) | 9.32 mm | Cutting Direction (HAND) | Right Hand |
| Flute Count (NOF) | 4 | Coolant Supply Property (CSP) | External |
| Flute Helix Angle (FHA) | 0 Degrees | Measurement Type | Fractional |
| Applicable Material | Hi-Temp Alloys |
