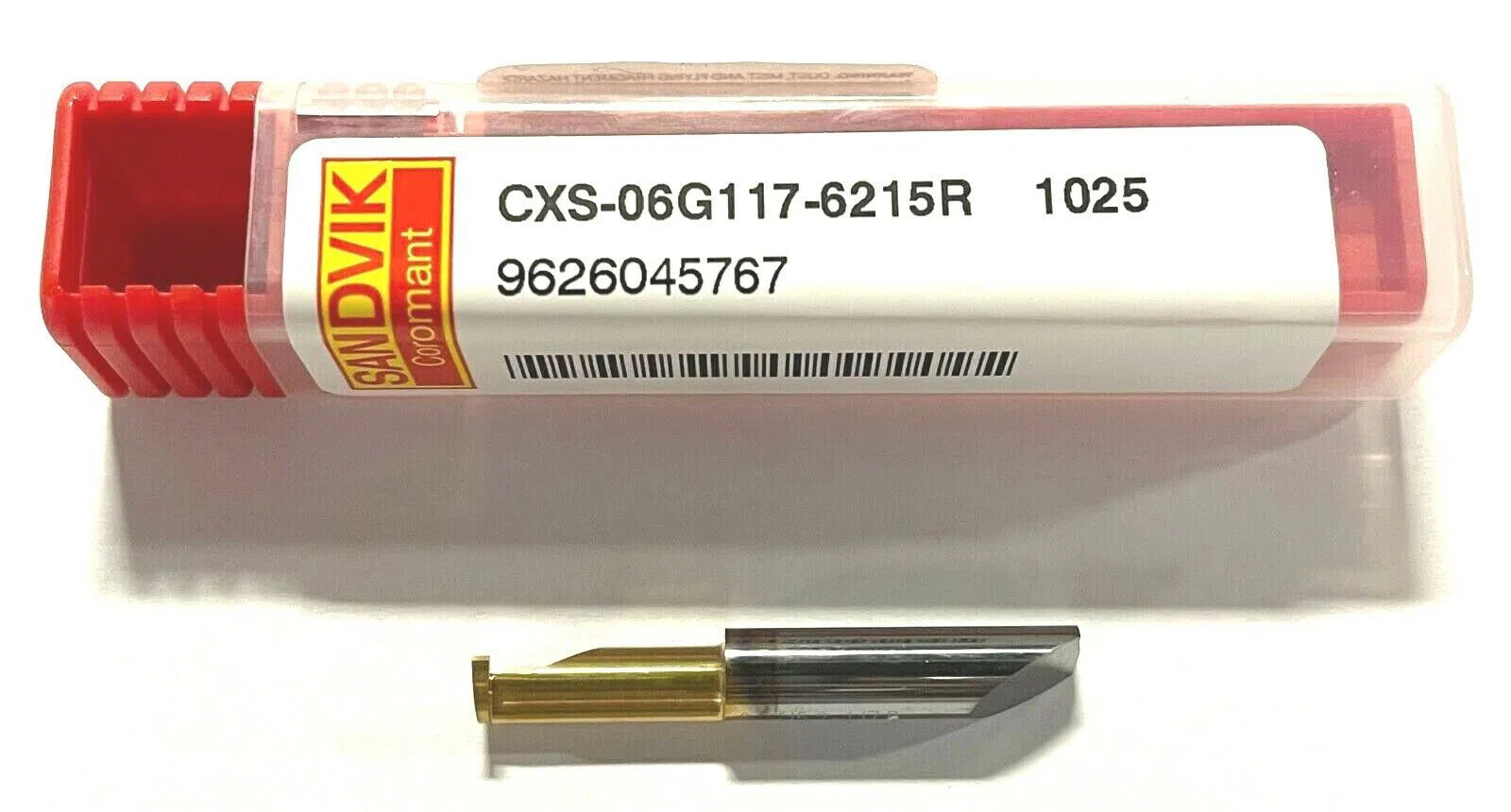

Sandvik CoroTurn® CXS-06G117-6215R 1025 XS Solid Carbide Tool For Grooving
Sandvik CoroTurn® CXS-06G117-6215R 1025 XS Solid Carbide Tool For Grooving
Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.
No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.
Low stock: 10 left
Couldn't load pickup availability
Material classification level 1 (TMC1ISO)
Cutting width (CW)1.17 mm
Cutting width lower tolerance (CWTOLL)0 mm
Cutting width upper tolerance (CWTOLU)0.05 mm
Chamfer width left hand (CHWL)0.04 mm
Chamfer width right hand (CHWR)0.04 mm
Cutting depth maximum (CDX)1.8 mm
Adaptive interface machine direction (ADINTMS)CoroTurn XS -metric: 6
Minimum bore diameter (DMIN1)6.2 mm
Maximum overhang (OHX)18 mm
Usable length (LU)15 mm
Hand (HAND)R
Grade (GRADE)1025
Substrate (SUBSTRATE)HC
Coating (COATING)PVD TiAlN+TiN
Coolant entry style code (CNSC)0: without coolant
Connection diameter (DCON)6 mm
Functional length (LF)37.25 mm
Functional width (WF)2.95 mm
Functional height (HF)0 mm
Body width (WB)3.95 mm
Weight of item (WT)0.021 kg
Sensor embedded property (SEP)0
Release date (ValFrom20)2004-01-26
