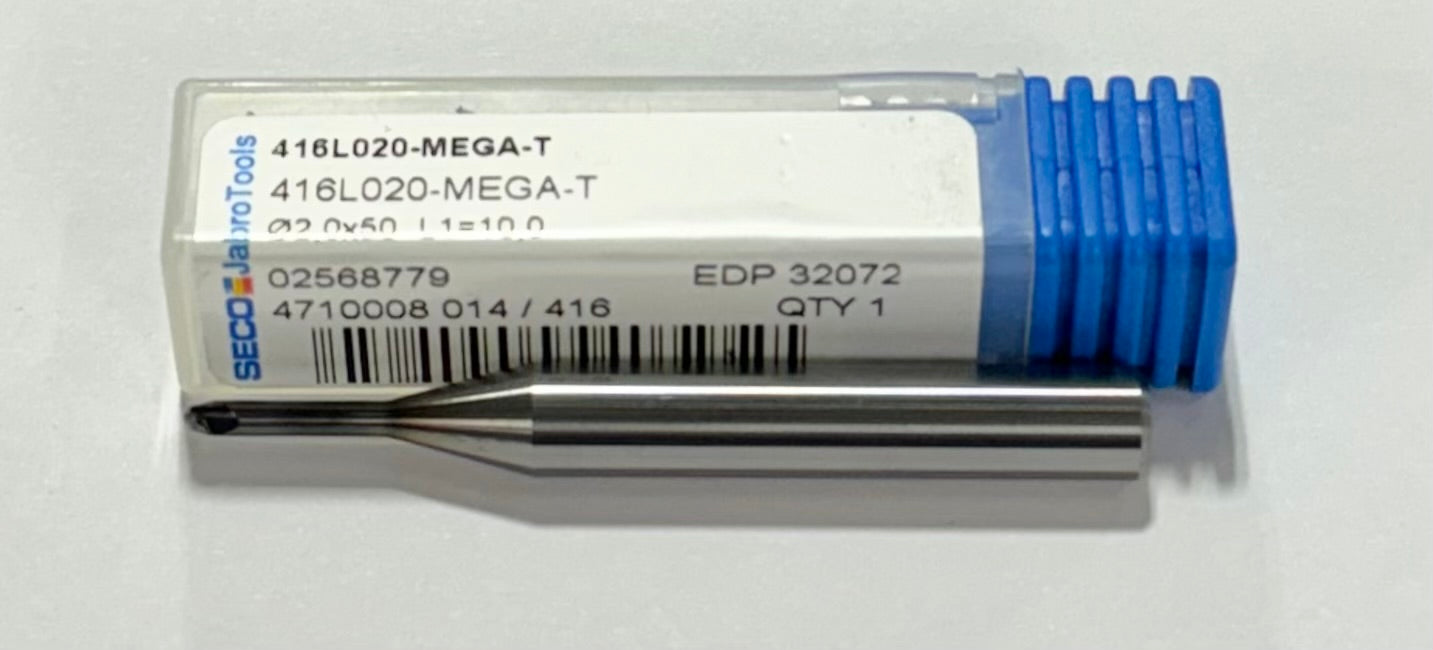

SECO 0.079" Carbide Ball Nose End Mill 50 Deg MEGA-T Coating 2 Flute

SECO 0.079" Carbide Ball Nose End Mill 50 Deg MEGA-T Coating 2 Flute

$20.67 USD
$0.00 USD $20.67 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.

Low stock: 10 left
Name Description Value
APMXS Depth of cut maximum in feed direction side 0.059 in
Barcode Product barcode 68779025000107
CA Collision angle 7.000 deg
CCC Center cutting capability 1
CGT Cutting geometry type JM416
Cmax Helical interpolation hole diameter maximum 0.150 in
Cmin Helical interpolation hole diameter minimum 0.102 in
COATING Cutting item coating MEGA-T
DC Cutting diameter 0.079 in
DMM Shank diameter 0.236 in
DN Neck diameter 0.075 in
FCEDC Face cutting edge count 2
FHA Flute Helix Angle 50.000 deg
Grade Grade UNSPEC
ICC Internal coolant channel No
ItemNumber Item Number 02568779
LN Neck length 0.394 in
NA Neck angle 0.000 deg
OAL Overall length 1.969 in
PCEDC Pheripheral cutting edge count 2
PSIR Tool lead angle 0.000 deg
RE Corner radius 0.039 in
Shanktype Shanktype Cylindrical
TCDMM Shank diameter tolerance class h5
WDX0 Maximum working depth 0 degree 0.398 in
WDX05 Maximum working depth 0.5 degree 0.409 in
WDX1 Maximum working depth 1 degree 0.425 in
WDX15 Maximum working depth 1.5 degree 0.437 in
WDX2 Maximum working depth 2 degrees 0.453 in
WDX3 Maximum working depth 3 degrees 0.488 in
Weight Net weight 0.035 lb
