• SECO 1.2mm Carbide End Mill MEGA-T Coating 20° Helix 2 Flute USA Made
1 1

Michigan Wholesale Tool Supply

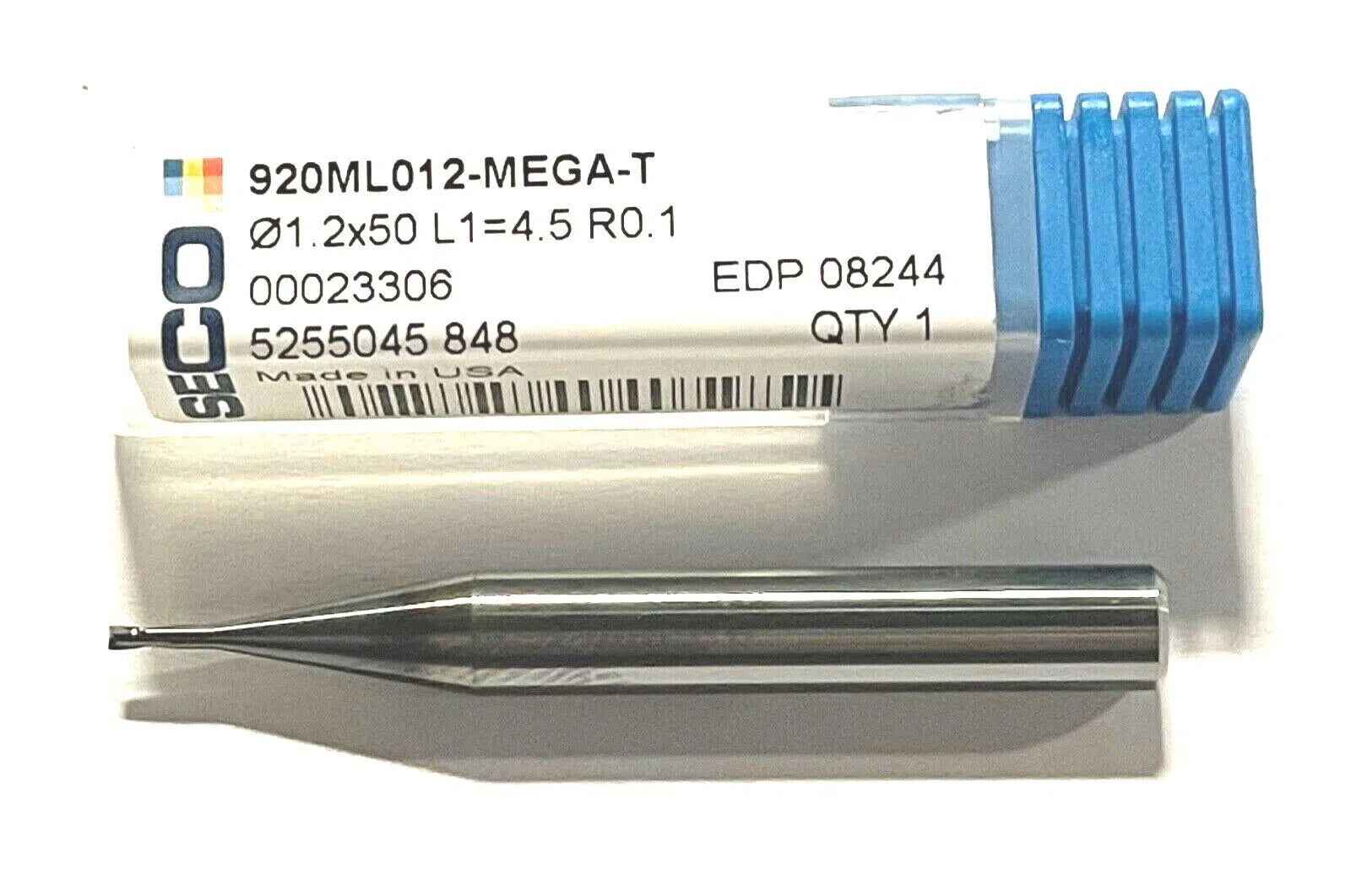

SECO 1.2mm Carbide End Mill MEGA-T Coating 20° Helix 2 Flute USA Made

SECO 1.2mm Carbide End Mill MEGA-T Coating 20° Helix 2 Flute USA Made

$14.19 USD
$0.00 USD $14.19 USD
Sale Sold out
Shipping calculated at checkout.
Free Shipping: Available on all orders over $75 in value, shipping to the lower 48 states. Refer to our Shipping Policy for more details.

Same-Day Shipping & Handling Cut-Off Time: Orders placed before 3:00 PM (EST) Monday through Friday, ship on the same business day.

No Returns Or Exchanges: Being in the wholesale business we offer our products at well below regular prices, for the intent of resale. Therefore, we do not accept returns or exchanges. Refer to our Refunds Policy for more details. All Michigan Wholesale Tool Supply orders must meet a combined total minimum order of $75.

51 in stock
SECO

USA MADE

SOLID CARBIDE END MILL

APMXS depth of cut maximum in feed direction side 0.071 in
Barcode Product barcode 23306000000103
CA collosion angle 8.500 deg
CCC center cutting capability 1
CGT cutting geometry type JM920
Cmax helical interpolation hole diameter maximum 0.086 in
Cmin helical interpolation hole diameter minimum 0.061 in
COATING cutting item coating MEGA-T
DC cutting diameter 0.047 in
DMM shank diameter 0.236 in
DN neck diameter 0.045 in
FCEDC Face cutting edge count 2
FHA Flute Helix Angle 20.000 deg
ICC internal coolant channel No
ItemNumber Item Number 00023306
LN Neck length 0.177 in
NA Neck angle 0.000 deg
OAL overall length 1.969 in
PCEDC Pheripheral cutting edge count 2
PSIR tool lead angle 0.000 deg
RE corner radius 0.004 in
Shanktype Shanktype Cylindrical
WDX0 maximum working depth 0 degree 0.169 in
WDX05 maximum working depth 0.5 degree 0.189 in
WDX1 maximum working depth 1 degree 0.189 in
WDX15 maximum working depth 1.5 degree 0.197 in
WDX2 maximum working depth 2 degrees 0.209 in
WDX3 maximum working depth 3 degrees 0.232 in
