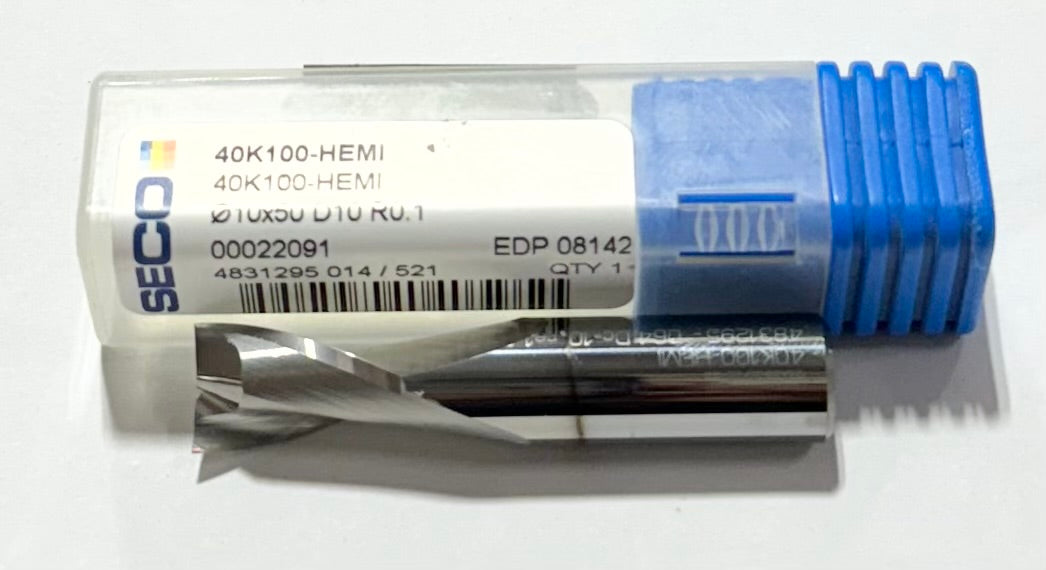

SECO 10mm Carbide End Mill 2 Flute HEMI Coated 0.1mm Radius

PRODUCT DESCRIPTION

Name	Description	Value
APMXS	Depth of cut maximum in feed direction side	0.630 in
Barcode	Product barcode	22091000000109
CCC	Center cutting capability	1
CGT	Cutting geometry type	JH40
COATING	Cutting item coating	HEMI
Cmax	Helical interpolation hole diameter maximum	0.779 in
Cmin	Helical interpolation hole diameter minimum	0.512 in
DC	Cutting diameter	0.394 in
DMM	Shank diameter	0.394 in
FCEDC	Face cutting edge count	2
FHA	Flute Helix Angle	25.000 deg
ICC	Internal coolant channel	No
ItemNumber	Item Number	00022091
OAL	Overall length	1.969 in
PCEDC	Pheripheral cutting edge count	2
PSIR	Tool lead angle	0.000 deg
RE	Corner radius	0.004 in
Shanktype	Shanktype	Cylindrical
TCDMM	Shank diameter tolerance class	h5
Weight	Net weight	0.090 lb
RECON	Reconditionable	Yes
RECONAPMN	Reconditioning cutting depth minimum	0.535 in
RECONCTX	Reconditioning count maximum	3
RECONDCN	Reconditioning cutting diameter minimum	0.354 in
