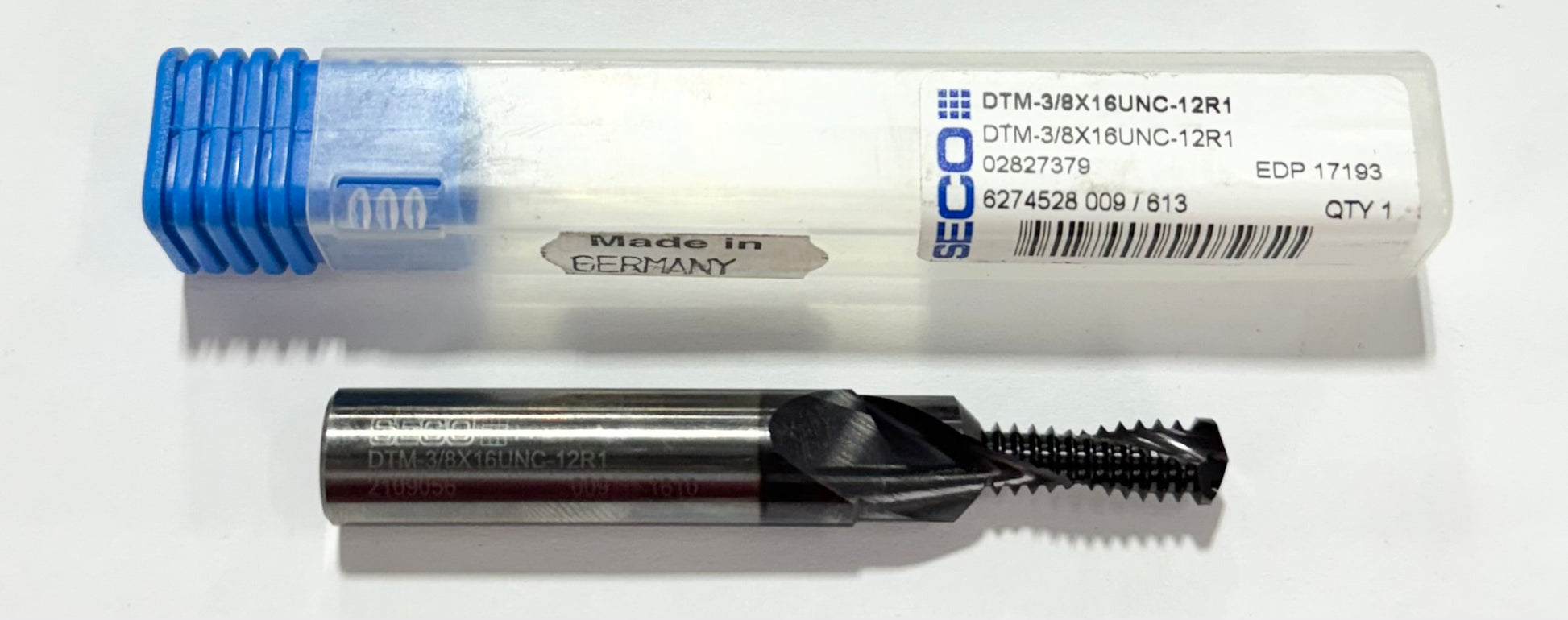

SECO 3/8"-16 Solid Carbide Thread Mill TiAlN Coating Helical 2 Flute Coolant Thru
SECO 3/8"-16 Solid Carbide Thread Mill TiAlN Coating Helical 2 Flute Coolant Thru
Regular price
$183.99 USD
Regular price
$0.00 USD
Sale price
$183.99 USD
Unit price
per
Shipping calculated at checkout.
Low stock: 5 left
Couldn't load pickup availability
SECO 3/8"-16 Solid Carbide Thread Mill TiAlN Helical 2 Flute Coolant Thru
PRODUCT DESCRIPTION
| Name | Description | Value |
|---|---|---|
| APMX | Depth of cut maximum | 0.904 in |
| Barcode | Product barcode | 27379028000109 |
| DC | Cutting diameter | 0.290 in |
| DC1 | Cutting diameter | 0.313 in |
| DC2 | Cutting diameter | 0.387 in |
| DMM | Shank diameter | 0.472 in |
| HAND | Direction of cutting | Right |
| ItemNumber | Item Number | 02827379 |
| LPR | Protruding length | 1.339 in |
| LS | Shank length | 1.772 in |
| LU | Usable length | 0.856 in |
| LUX | Usable length maximum | 0.904 in |
| NOF | Flute count | 2 |
| OAL | Overall length | 3.110 in |
| PNA | Profile included angle | 60.000 deg |
| RE | Corner radius | 0.005 in |
| RPMX | Rotational speed maximum | 25000 rpm |
| SIG | Point angle | 140.000 deg |
| Shanktype | Shanktype | Cylindrical |
| TDZ | Thread diameter size | 3/8 |
| TPIN | Threads per inch minimum | 16.000 |
| TPIX | Threads per inch maximum | 16.000 |
| TTP | Thread type | Internal |
| VER | Version (Internal/External/Both) | Internal |
| Weight | Net weight | 0.190 lb |
| ZEFP | Peripheral effective cutting edge count | 2 |
| ZNP | Peripheral edges in the tool | 2 |
